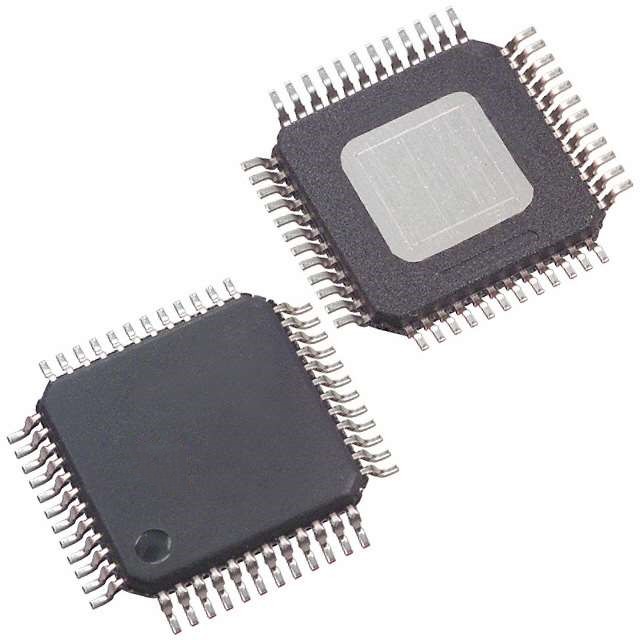

The DRV8305NQPHPQ1 device is a gate driver IC for three-phase motor drive applications that provides three high-precision half-bridge drivers, each capable of driving one high-side and one low-side N-channel MOSFET. The charge pump driver supports low-voltage operation with a duty cycle of 100% for cold-start conditions. The device can withstand up to 45V load dips.

The DRV8305NQPHPQ1 features three bi-directional shunt amplifiers with variable gain settings and an adjustable offset reference for accurate low-side current measurement.

The DRV8305NQPHPQ1 features an integrated voltage regulator to meet the power requirements of microcontrollers (MCUs) or other systems. The regulator can be directly connected to the LIN physical interface to support low-power system standby and sleep modes.

Features

- AEC-Q100 compliant for automotive applications

- Ambient operating temperature range:

- Temperature Class 0 (E): -40°C to +150°C

- Temperature Class 1 (Q): -40°C to +125°C

- 4.4V to 45V Operating Voltage Range

- 1.25A and 1A peak gate drive current

- Intelligent gate drive architecture (IDRIVE and TDRIVE)

- Programmable high-side and low-side slew rate control

- Charge pump gate driver with 100% duty cycle support

- Three integrated shunt amplifiers

- 50mA integrated LDO (3.3V and 5V options)

- 3 PWM or 6 PWM input control up to 200kHz

- Capable of single PWM mode commutation

- Serial Peripheral Interface (SPI) for device setup and fault reporting

- Thermally enhanced 48-pin HTQFP package

- Protection features:

- Fault diagnostics and MCU watchdog

- Programmable dead-time control

- MOSFET breakdown protection

- MOSFET VDS overcurrent monitor

- GATE DRIVER FAILURE DETECTION

- Battery reverse protection support

- Limp home mode support

- Thermal warning and shutdown

Applications

- Three-phase BLDC and PMSM motors

- Automotive fuel and water pumps

- Automotive fans and blowers
