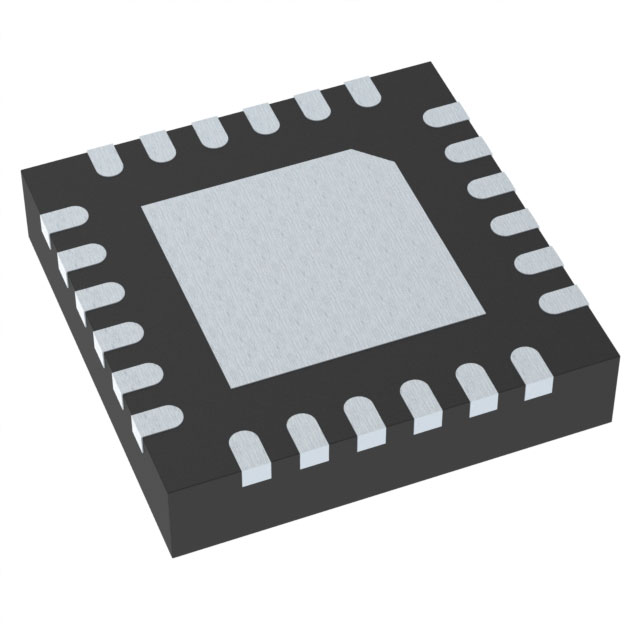

The DRV8899QWRGERQ1 is a fully integrated stepper motor driver that supports up to 1A full-scale current with internal microstepping indexer, smart tuned attenuation technology, advanced stall detection algorithms and integrated current sensing. Featuring a simple step/direction control interface to manage direction and step rate, it supports up to 1/256 levels of microstepping for smooth motion trajectories. The integrated current sensing feature eliminates the need for two external resistors, saving board space and cost.The DRV8899QWRGERQ1 offers eight attenuation mode options including: Smart Tuning, Slow, and Hybrid attenuation options. Smart tuning technology automatically adjusts for optimal current regulation performance and compensates for any motor variations and aging effects. The device also includes an integrated torque DAC that allows the controller to adjust the output current via SPI without adjusting the VREF voltage reference. The device features an nSLEEP pin that provides a low power sleep mode for very low standby current. The device features full-duplex, 4-wire synchronous SPI communications and allows up to 63 devices to be daisy-chained for configurability and detailed fault reporting.

Features

- Complies with AEC-Q100 for automotive applications

- Up to 1/256 microsteps

- Integrated current sense function

- Eliminates need for sense resistors

- Intelligent tuned attenuation technology, fixed slow and hybrid attenuation options

- 4.5V to 45V operating supply voltage range

- Pin-to-Pin RDS(ON) Models:

- DRV8899-Q1: 1200mΩ at 25°C HS + LS

- High current capacity per bridge

- DRV8899-Q1: 1.7A peak, 1A full scale

- TRQ_DAC bit to adjust full-scale current

- Configurable off-time PWM chopper

- Simple STEP/DIR interface

- SPI with daisy-chain support

- Low current sleep mode (2μA)

- Programmable output slew rate

- Spread spectrum clock minimises EMI

- Protection Features

- VM undervoltage lockout

- Overcurrent protection

- Open Load Detection

- Thermal Warning and Shutdown

- Under Temperature Warning

- Fault Condition Indication Pin (nFAULT)

- Providing Functional Safety

- Documentation to assist in the design of functionally safe systems

Applications

- Automotive bipolar stepper motors

- Headlight position adjustment

- Head-up display (HUD)

- HVAC stepper motors

- Electronic Fuel Injection (EFI)
