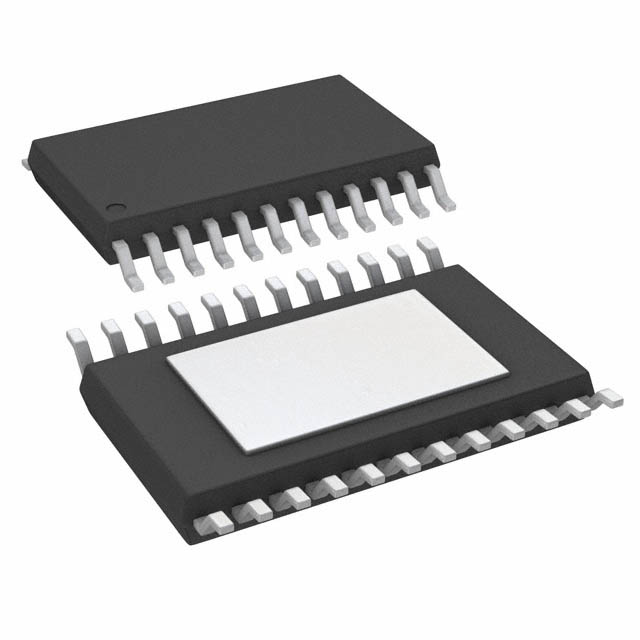

The DRV8912QPWPRQ1 is a pin-to-pin compatible family of integrated multi-channel half-bridge drivers with 4 to 12 half-bridges. The device family features low on-state resistance (RDS(ON)) for improved thermal performance during high-current operation.

Features

- Compliant with automotive-oriented standards

- 4, 6, 8, 10, and 12 half-bridge outputs

- 4.5V to 32V Operating Voltage

- 40V absolute maximum

- 1A RMS current per output

- Parallel outputs have 6A maximum current

- Low-power sleep mode (1.5µA)

- Supports 3.3V and 5V logic inputs

- SPI provides configuration and diagnostics

- 5MHz 16-bit SPI communication

- Daisy chain function

- PWM generator programmable via SPI

- Independent half-bridge PWM operation

- Configurable for high-side, low-side, and H-bridge load drivers

- Supports 8-bit duty cycle resolution

- Integrated protection with detailed per-channel diagnostics via SPI

- nFAULT pin output

- VM undervoltage lockout (UVLO)

- VM Over Voltage Protection (OVP)

- Logic Power-On Reset (POR)

- Overcurrent protection (OCP)

- Enhanced open load detection (OLD)

- Thermal warning and thermal shutdown (OTW/OTSD)

Applications

- HVAC wing panel DC motors

- Side mirror adjustment and mirror folding

- LED Applications

- Multi-brush DC motors and solenoids
