The DRV8706SQRHBRQ1 is a highly integrated H-bridge gate driver capable of driving both high-side and low-side N-channel power MOSFETs, which generates the appropriate gate drive voltage using an integrated multiplier charge pump for the high-side and a linear regulator for the low-side.

The device reduces system cost and improves reliability by using an intelligent gate drive architecture. The gate driver optimises dead time to avoid breakdown problems, controls for EMI reduction with adjustable gate drive current, and prevents drain-source and gate shorts with VDS and VGS monitors.

Features

- Complies with AEC-Q100 for automotive applications:

- Temperature Class 1: -40°C to +125°C, TA

- Provides Functional Safety

- Documentation to aid in the design of functionally safe systems

- H-Bridge Smart Gate Drivers

- 4.9V to 37V (40V absolute maximum) operating voltage range

- Charge pump multiplication enables 100% PWM

- Half-bridge and H-bridge control modes

- Pin-to-Pin Gate Driver Models

- DRV8106-Q1: Half-bridge with in-line amplifier

- DRV8705-Q1: H-bridge with low-side amplifier

- Smart Gate Driver Architecture

- Adjustable slew rate control

- 0.5 mA to 62 mA Peak Pull Current Outputs

- 0.5 mA to 62 mA peak sink current output

- Integrated dead-time handshake

- Wide common mode current shunt amplifier

- Supports in-line high-side or low-side

- Adjustable gain settings (10, 20, 40, 80 V/V)

- Integrated feedback resistors

- Adjustable PWM blanking scheme

- Multiple interface options available

- SPI: detailed configuration and diagnostics

- H/W: Simplified control and fewer MCU pins

- Spread spectrum clock reduces EMI

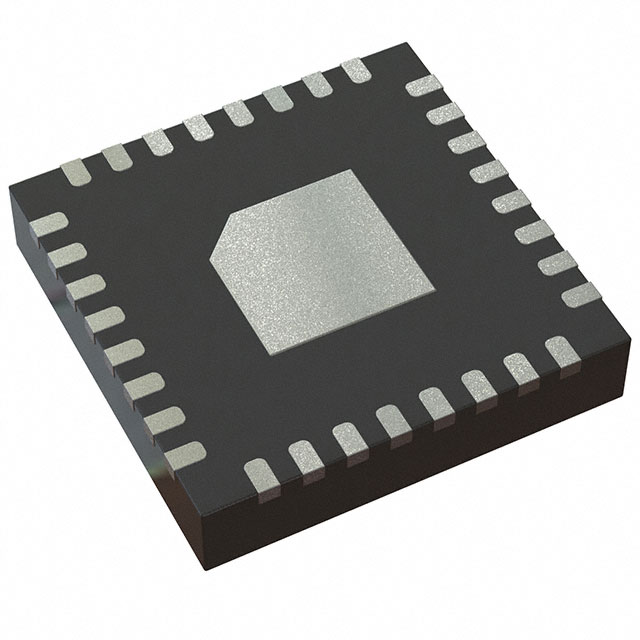

- Compact VQFN package with wettable flanks

- Integrated protection features

- Dedicated driver disable pin (DRVOFF)

- Power supply and regulator voltage monitors

- MOSFET VDS overcurrent monitor

- MOSFET VGS gate fault monitor

- Charge Pump for Reverse Polarity MOSFETs

- Offline Open Load and Short Circuit Diagnostics

- Device thermal warning and thermal shutdown

- Fault condition interrupt pin (nFAULT)

Applications

- Automotive Brushed DC Motors

- Solenoids and relays

- Power window lifters and sliding doors

- Power sunroofs

- Power seat modules

- Power boot and boot doors

- BDC Fuel pumps, water pumps, oil pumps

- Windscreen wiper
