The NCN26000XMNTXG Ethernet chip is an Ethernet transceiver (PHY) that complies with IEEE 802.3cg standards and is designed for industrial multi-point Ethernet. The NCN26000XMNTXG offers all the physical layer characteristics required for transmitting and receiving data over a single unshielded twisted pair. The NCN26000XMNTXG is transmitted to the existing half-duplex 10Mb/s functional Ethernet MAC controller via the standard MII interface.

Key features

Complies with the 10BASE-T1S-IEEE 802.3cg standard

A data rate of 10Mb/s, half-duplex

3.3V power supply

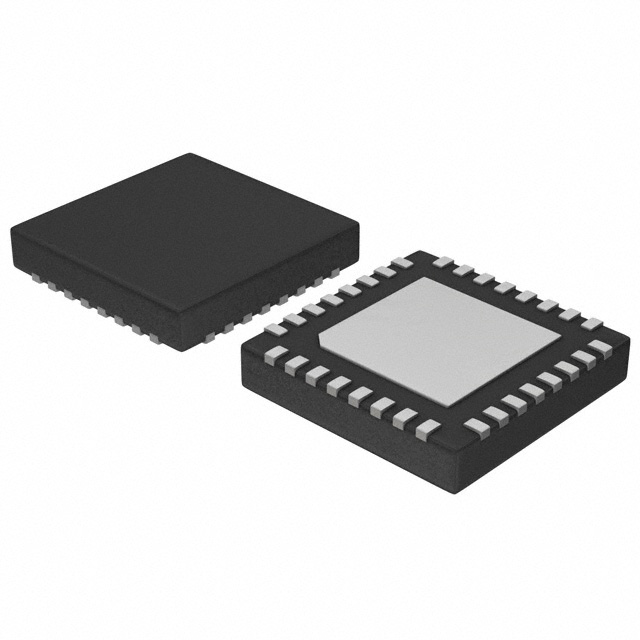

5mm x 5mm QFN32 package

The Standard Medium Independent Interface (MII) is connected to any MAC that supports CSMA/CD half-duplex (with exposed CRS and COL pins).

Achieve conflict-free operations on shared media (multi-point) through local configuration to avoid physical layer conflicts (PLCA)

Configure and monitor using the standard MII management interface (also known as MDIO)

When the equipment starts up, the pull resistor on the dedicated pin is used for local configuration in the start-up sequence

Enhanced anti-noise mode, allowing communication to be conducted at noise levels exceeding the IEEE 802.3cg specification

Support more than 8 nodes via >25m UTP cable

Fast startup: Less than 100ms

Support bootstrap in isolation mode

Application field

Industrial automation

Sensor interface

Home/Building control

Safety and field instrumentation
