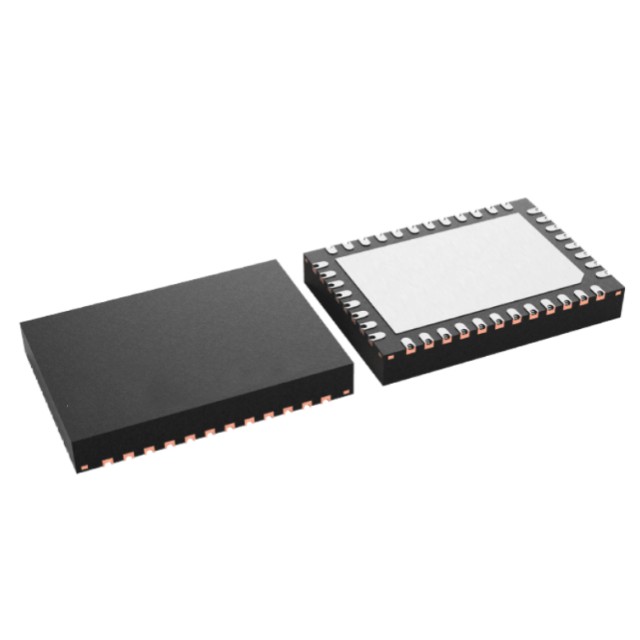

MCT8316A1VQRGFRQ1: 40V, 8A, Sensorless Trapezoidal Control Three-Phase BLDC Motor Driver, VQFN-40

Model: MCT8316A1VQRGFRQ1

Package: VQFN-40

Type: Three-Phase BLDC Motor Driver

MCT8316A1VQRGFRQ1 Product Features:

Three-phase BLDC motor driver with integrated sensorless motor control algorithm

4.5V to 35V operating voltage (absolute maximum 40V)

High output current capability: 8A peak

Low MOSFET on-state resistance

RDS(ON) (HS + LS) = 95mΩ at TA = 25°C

Low-power sleep mode

3µA (maximum) at VVM = 24V, TA = 25°C

Speed loop accuracy: 3% using internal clock, 1% using external clock reference

Supports PWM frequencies up to 100kHz for low-inductance motors

No external current sense resistor required

Integrated 3.3V ±5%, 20mA LDO regulator

Integrated 3.3V/5V, 170mA buck regulator

Dedicated DRVOFF pin to disable (high-impedance state) output

Spread spectrum and slew rate control for EMI reduction

MCT8316A1VQRGFRQ1 Applications:

Brushless DC (BLDC) motor modules

Two-wheeler fuel pumps

Headrest control modules
