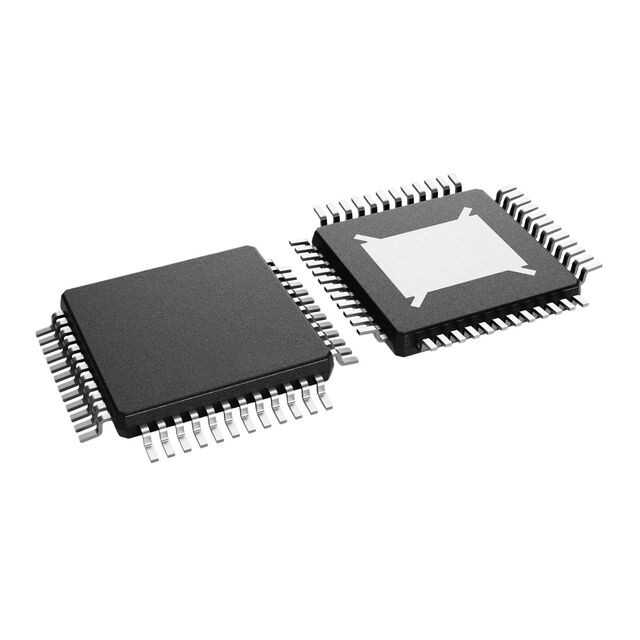

DRV3233EPHPRQ1: Automotive-grade battery three-phase gate driver unit, HTQFP-48

Product Details:

Model: DRV3233EPHPRQ1

Package: HTQFP-48

Type: Three-phase gate driver

Overview:

The DRV3233EPHPRQ1 is an integrated smart gate driver for 12V and 24V automotive three-phase BLDC applications. This device incorporates three half-bridge gate drivers, each capable of driving both high-side and low-side N-channel power MOSFETs. The DRV3233EPHPRQ1 generates the appropriate gate drive voltage using an integrated bootstrap diode and GVDD charge pump. This smart gate driver architecture supports configurable peak gate drive currents ranging from 0.8mA to 1A (sink current) and 2A (source current).

DRV3233EPHPRQ1 Product Attributes:

Motor Type - AC, DC: Brushless DC (BLDC)

Function: Controller - Current Management

Output Configuration: Half-Bridge (3)

Interface: PWM, SPI

Technology: NMOS

Current - Output: 2A

Voltage - Supply: 4.5V to 60V

Operating Temperature: -40°C to 150°C (TJ)

Mounting Type: Surface Mount

Package/Case: 48-PowerTQFP

Supplier Device Package: 48-HTQFP (7x7)

DRV3233EPHPRQ1 Applications:

12V/24V automotive motor control applications

– Electric power steering and steer-by-wire

– Electromechanical braking, brake assist and brake-by-wire

– Gear shifting and shift-by-wire

– Automotive pumps
