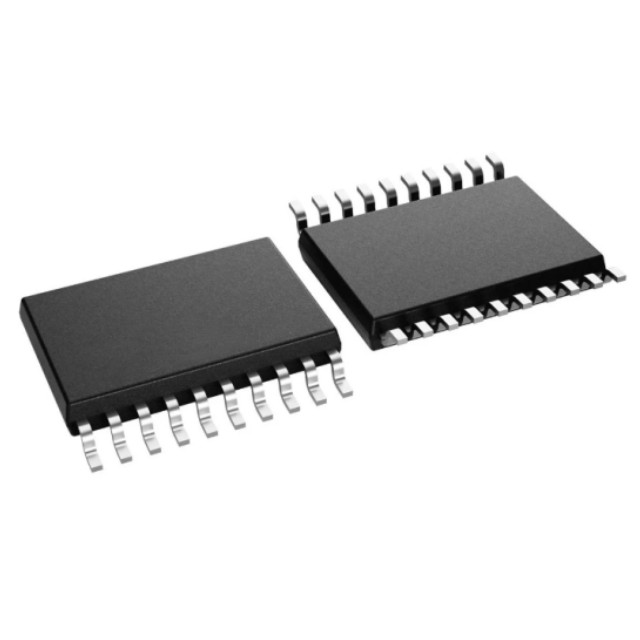

DRV8161DGSR: 105V, Single-Channel Half-Bridge Smart Gate Driver, VSSOP-20

Model: DRV8161DGSR

Package: VSSOP-20

Type: Half-Bridge Smart Gate Driver

The DRV8161DGSR is a half-bridge gate driver capable of driving both high-side and low-side N-channel MOSFETs. The gate drive voltage is generated from the GVDD supply pin, with an integrated bootstrap circuit enabling the driving of high-side FETs with drain voltages up to 102V. The intelligent gate driver architecture supports 16 levels (48 combinations) of peak gate drive current, with up to 1A sink current and 2A source current, along with built-in gate drive current timing control.

DRV8161DGSR Product Features:

Drives two N-channel MOSFETs in a half-bridge configuration

High-side MOSFET source/drain voltage up to 102V (absolute maximum)

Gate drive supply from 8V (5V for DRV8162L) to 20V

Integrated bootstrap diode

Integrated trickle charge pump supporting 100% PWM duty cycle

16-level gate drive peak current

16mA - 1000mA sink current

32mA - 2000mA source current

Sink/source current ratio 1:1, 1:2, 1:3

Adjustable PWM dead time insertion 20ns - 900ns

Reliable design for motor phase (SH) switching

Slew rate 50V/ns

Negative transient voltage -20V

2A strong gate pull-down

Dual gate driver power inputs enable redundant shutdown (DRV8162, DRV8162L)

Low offset current detection amplifier (DRV8161)

Adjustable gain (5, 10, 20, 40 V/V)

Flexible PWM control interface; 2-pin PWM, 1-pin PWM and independent PWM modes

13-level VDS overcurrent threshold

Independent shutdown pin (nDRVOFF)

Gate driver soft-shutdown sequence
