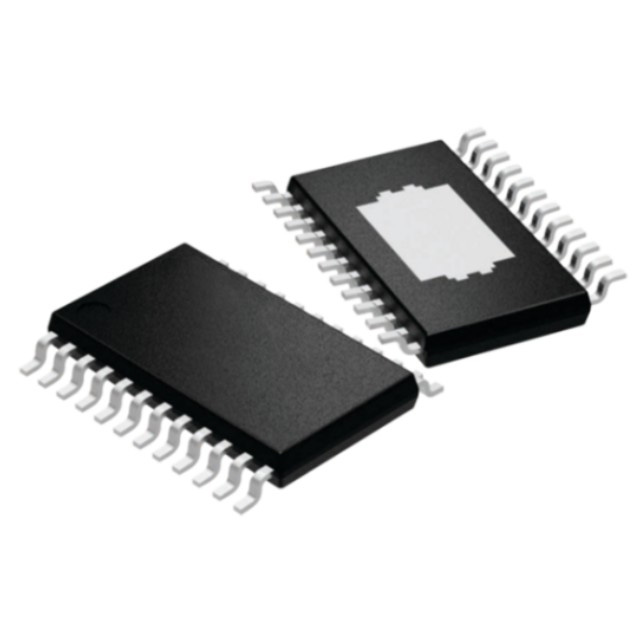

DRV81242QPWPRQ1: 8-channel, 40V, 700mΩ fully protected configurable low-side and high-side driver

Overview:

The DRV81242QPWPRQ1 is an 8-channel low-side and high-side driver with protection and diagnostic features. This device is designed for controlling relays, LEDs, lamps, and motors. It supports various protection features, such as under-voltage, over-voltage, short-circuit, and open-load detection. The DRV81242QPWPRQ1 offers high integration with embedded protection and diagnostics, making it ideal for automotive body and powertrain applications.

DRV81242QPWPRQ1 Product Features:

Analogue supply voltage: 3V to 40V

Start-up voltage as low as 3V

Compliant with LV124 automotive standard

Digital supply voltage: 3V to 5.5V

Compatible with 3.3V and 5V microcontrollers

Minimum drain-source clamp voltage: 42V

Maximum source-to-ground clamp voltage: -18V

Independent power supply (VM_HS) for high-side channel

RDS(ON): Typical value of 700mΩ at 12V, 25°C

Current: 330mA per output at 85°C (all channels active)

Two parallel inputs with mapping capability

Fail-safe activation in limp-home mode

Utilising nSLEEP and IN pins

Two independent internal PWM generators

Bulb Inrush Mode (BIM) for driving lamps

Suitable for 2W/5W lamps and other capacitive loads

Low-current sleep mode: < 3µA at TJ ≤ 85°C

DRV81242QPWPRQ1 Applications:

Zone Control Modules (ZCM)

Body Control Modules (BCM)

Automotive Lighting

Petrol and Diesel Engines

Vehicle Control Units (VCU)

Programmable Logic Controllers (PLC)
