DRV8376HNLGR: 70V, 4.5A, Three-Phase Integrated FET Motor Driver, VQFN-28

Product Details:

Model: DRV8376HNLGR

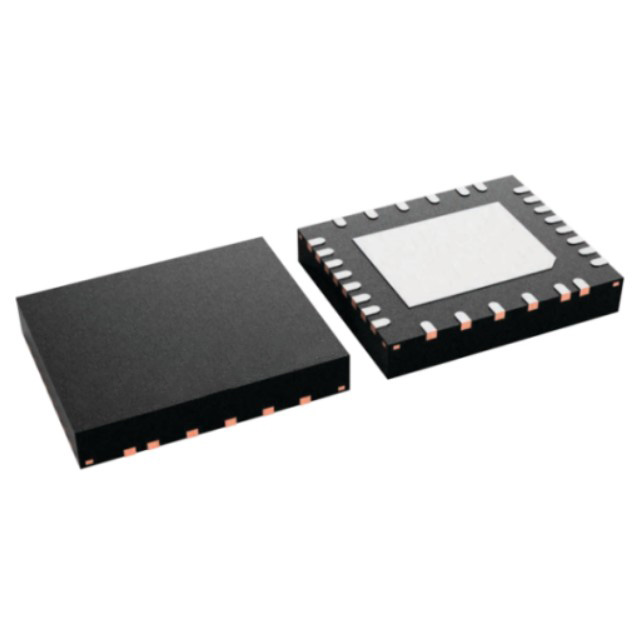

Package: VQFN-28

Type: Three-Phase BLDC Motor Driver

DRV8376HNLGR Product Features:

Three-phase BLDC motor driver

Supports 48V systems

Supports PWM frequencies up to 100kHz

Active demagnetisation support reduces power loss

Cycle-by-cycle current limiting to restrict phase currents

4.5V to 65V operating voltage (absolute maximum 70V)

High output current capability: 4.5A peak

Low MOSFET on-state resistance

RDS(ON) (HS + LS) = 400mΩ at TA = 25°C

Minimised switching losses via 1.1V/ns slew rate and reverse recovery loss reduction techniques

Adjustable conversion rate options

Features low audible noise, user-friendly motor control functionality, ultra-low dead time (< 200ns) and propagation delay (< 100ns)

Low-power sleep mode

1.5µA (typical) at VVM = 24V, TA = 25°C

Multiple control interface options

6x PWM control interfaces

3x PWM control interfaces

Integrated current sensing eliminates external current sense resistors

Supports 1.8V, 3.3V, and 5V logic inputs

Integrated 3.3V (±5%), 30mA LDO regulator

Integrated 5V (±5%), 30mA LDO regulator

DRV8376HNLGR Applications:

Brushless DC (BLDC) motor modules

HVAC motors

Office automation equipment

Factory automation and robotics

Wireless antenna motors

Unmanned aerial vehicles (UAVs)
