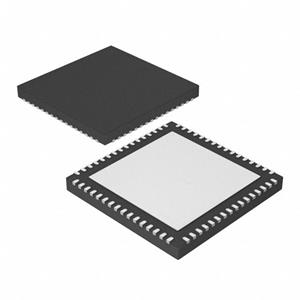

The SI5347D-D-GM is a high-performance, jitter decay clock multiplier that integrates four arbitrary frequency DSPLLS, making it suitable for applications that require maximum integration and independent timing paths. This device is based on the 4th generation DSPLL technology, offering arbitrary frequency conversion and typical jitter performance below 100 fs. Each DSPLL supports independent free operation, hold operation mode, as well as automatic and uninterrupted input clock switching. The SI5347D-D-GM can be programmed via a serial interface and an online programmable non-volatile memory, so it is always powered on with a known configuration.

Technical parameters

PLL: Yes

Input: LVCMOS, LVDS, LVPECL, crystal

Output: CML, HCSL, LVCMOS, LVDS, LVPECL

Number of circuits: 1

Ratio - Input: Output: 5:4

Differential - Input: Output: Yes/Yes

Frequency - Maximum value: 350MHz

Frequency divider/frequency doubler: Yes/No

Voltage - Power supply: 1.71V to 3.47V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Device package: 64-QFN (9x9)

Typical applications

• OTN multiplexed repeater and repeater

• 10/40/100G network card

• GbE/10 GbE/100 GbE Synchronous Ethernet (ITU-T G.8262)

• Carrier Ethernet switches

• Broadcast video
