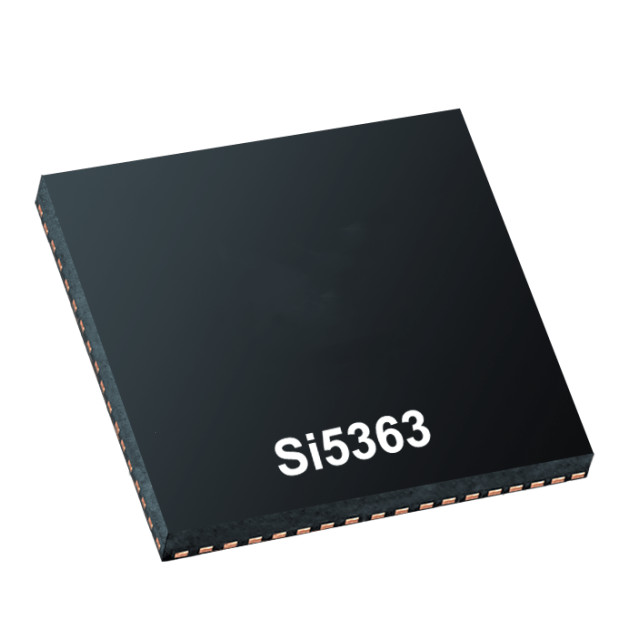

The SI5363A-A-GM is an ultra-high-performance jitter attenuator that can provide clock generation and jitter attenuation at any frequency for high-performance applications such as 112/224G PAM4, SerDes and OTN applications. The frequency output range of SI5363A-A-GM is as high as 1.3GHz with an error of 0 ppm. The loop filter is fully integrated on-chip, eliminating the noise coupling risk associated with discrete solutions. In addition, the jitter attenuation bandwidth is digitally programmable, providing jitter performance optimization at the application level. The SI5363A-A-GM can be configured quickly and easily using the ClockBuilder Pro software.

Feature

It adopts the fifth-generation DSPLL™ and MultiSynth™ technologies

Any input to an output frequency combination up to 2.75 GHz

• Ultra-low phase jitter (typical value <55 fs)

The enhanced non-interruptible switch can minimize output phase transients (typical value 35 ps).

• Up to six differential/single-ended inputs

• Input the frequency range

Differential: 8 kHz to 1000 MHz

-LVCMOS: 8 kHz to 250 MHz

18 outputs

Output frequency range

Differential: 8 kHz to 2.75 GHz

-LVCMOS: 8 kHz to 250 MHz

Fixed or user-adjustable output formats

Simplified API interface

• Full set of status monitors

• 3 DSPLL, zero MultiSynth

• Compatible with the Si5401/02/03 IEEE 1588 PTP network synchronizer pin

• 72-QFN 10x10 mm

• ClockBuilder™ Pro configuration software

Typical applications

• 56G/112G/224G PAM4 SerDes clock

• OTN multiplexed transponders and transponders

100/200/400/600/800G network cable cards

• Synchronous Ethernet

• Data center switch

Medical imaging

• Testing and measurement

100G/200G/400G optical transceivers
