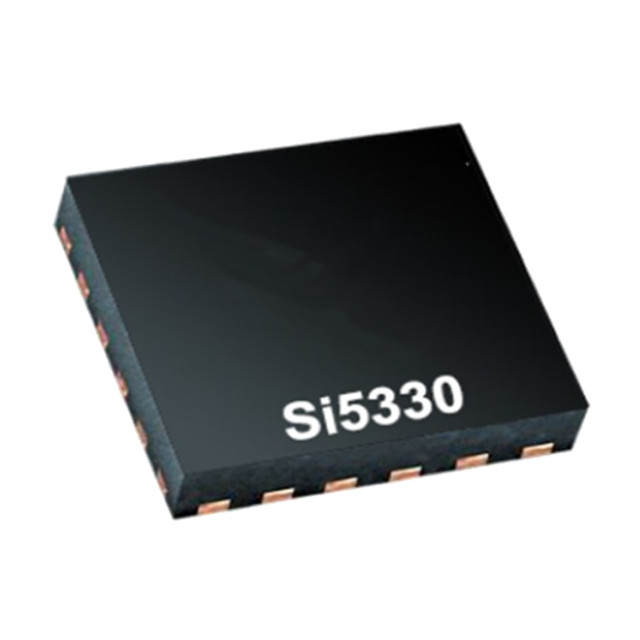

The SI5330L-B00229-GM clock buffer/level converter is a low-jitter, low-skewed fan-out buffer, specifically designed for high-performance PCB clock distribution applications. The SI5330L-B00229-GM buffer and converter support single-ended or differential input clock signals. This device generates four differential/eight single-ended low-jitter output clocks from a single input clock, which are used as clock level converters.

Technical parameters

Type: Fan-out buffer (distribution), converter

Number of circuits: 1

Ratio - Input: Output: 1:4

Differential - Input: Output: None/Yes

Input: CMOS, HSTL, LVTTL, SSTL

Output: LVDS

Frequency - Maximum value: 350 MHz

Voltage - Power supply: 1.71V to 3.63V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Device packaging: 24-QFN (4x4)

The output drive voltage of SI5330L-B00229-GM is 1.5, 1.8V, 2.5V or 3.3V, and it is independent of the core power supply of 1.8V, 2.5V or 3.3V. This buffer/converter has low power consumption, consuming only 10mA of the typical core current, and has an additional jitter of 150fs RMS and an output offset of 100ps. Typical applications include high-speed clock distribution, Ethernet switches and routers, SONET/SDH, Fibre Channel and telecommunication line cards.

Application scenarios

High-speed clock distribution

Ethernet switches and routers

SONET/SDH

PCI express 2.0/3.0

Optical fiber channel

MSAN/DSLAM/PON

Telecommunication line card
