The SI5344H-D-GM is a high-frequency, ultra-low jitter attenuator with a digitally controlled oscillator. This dedicated jitter attenuation clock multiplier combines the fourth-generation DSPLL with ultra-low phase jitter and MultiSynth™ technology to achieve a high-data-rate coherent optical transceiver design. Its technical parameters include:

Number of Output terminals: 4 Output

Maximum output frequency: 2.75 GHz

Output levels: CML, HCSL, LVCMOS, LVDS, LVPECL

Input level: LVCMOS

Maximum input frequency: 750 MHz

Power supply voltage - minimum: 1.71V

Power supply voltage - maximum: 1.89V

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

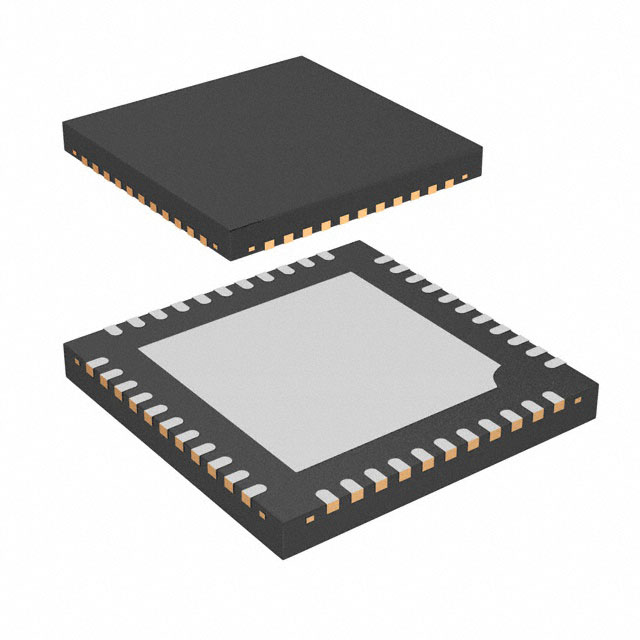

Packaging/Cabinet: QFN-44

Series: Si5344

Installation style: SMD/SMT

Packaging: Tray

Development Kit: Si5344H-EVB

Humidity sensitivity: Yes

Working power supply current: 145 mA

Pd- Power dissipation: 900 mW

The SI5344H-D-GM can assign up to four outputs to the high-frequency mode and can reach up to 2.75 GHz under the typical phase jitter of 50 fs-rms (1 MHz-40 MHz). When increased frequency flexibility is required, each output can also be configured as an arbitrary frequency output for multi-synthesizer mode, such as clock forward error correction (FEC), while still providing <150 fs-rms typical phase jitter (12 kHz-20 MHz). The SI5344H-D-GM also features DCO control with a step control as low as 0.001 ppb and locks to the gap clock input.

Application field

100G/200G/400G optical transceivers

Wireless base station
