The SI5342D-D-GM dual-output high-performance jitter attenuator combines the fourth-generation DSPLL and MultiSynth technologies, providing clock generation and jitter attenuation at any frequency for applications requiring the highest jitter performance.

Technical parameters

PLL: Yes

Input: LVCMOS, LVDS, LVPECL, crystal

Output: CML, HCSL, LVCMOS, LVDS, LVPECL

Number of circuits: 1

Ratio - Input: Output: 5:2

Differential - Input: Output: Yes/Yes

Frequency - Maximum value: 350MHz

Frequency divider/frequency doubler: Yes/No

Voltage - Power supply: 1.71V to 3.47V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

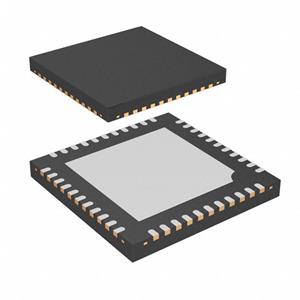

Device package: 44-QFN (7x7)

The frequency output range of SI5342D-D-GM is up to 1028 MHz, the phase jitter performance is 0.09 ps rms, and the error is 0 ppm. The loop filter is fully integrated on-chip, eliminating the noise coupling risk associated with discrete solutions. In addition, the jitter attenuation bandwidth is digitally programmable, providing jitter performance optimization at the application level. SI5342D-D-GM can be configured quickly and easily using the ClockBuilder Pro software.

Target application

• OTN multiplexed transponders and transponders

• 10/40/100 G network line card

• GbE/10 GbE/100 GbE Synchronous Ethernet (ITU-T G.8262)

• Carrier Ethernet switches

• SONET/SDH line card

• Broadcast video

• Testing and measurement

• Complies with the ITU-T G.8262 (SyncE) standard
