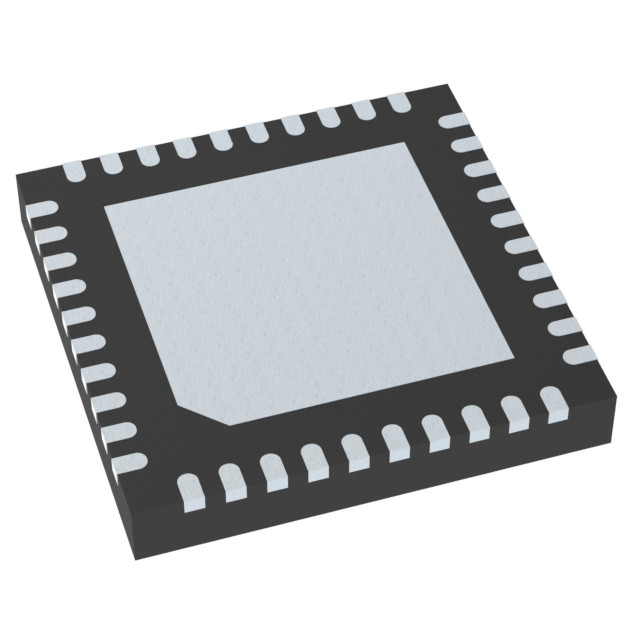

The RC32514A000GNL is a small, low-power timing device designed for placement adjacent to a PHY, switch, ASIC or FPGA. This device requires multiple reference clocks with jitter performance less than 100fs. The main features include:

Jitter less than 100 FS RMS (10kHz to 20MHz)

Compliant with ITU-T G.8262 Synchronous Ethernet /OTN (EEC/OEC) and ITU-T G.8262.1 Enhanced Synchronous Ethernet /OTN (eEEC/eOEC)

The PLL core consists of a fractional feedback analog PLL (APLL) and can be optionally controlled by a digital PLL (DPLL)

It operates through internal crystals

APLL frequency independent of input/crystal frequency

Used as frequency synthesizers, jitter attenuators, synchronization devices from clocks or numerical control oscillators (Dcos)

The programmable range of the DPLL loop filter is from 0.1Hz to 12kHz

The adjusted particle size of DCO is less than 1ppb

The programmable input buffer supports HCSL, LVDS or two LVCMOS without the need for external termination

Input frequency :1MHz to 800 MHz(250MHz for LV CMOS)

Refer to the monitor to limit/cancel the input clock

Programmable state output

4-channel differential / 8-channel LVCMOS output

Any frequency from 10 MHZ to 1GHz (180MHz for LVCMOS)

The programmable output buffer supports HCSL (DC coupling), LVDS/LVPECL/CML(AC coupling), or two LVCMOS

The differential output swing amplitude is selectable :400mV to 800mV

The output clock phase can be adjusted separately in steps of 100ps

Output enables input with programmable effects

Supports up to 1MHz I C or up to 20MHz SPI serial processor ports

Through the internal customer-definable one-time programmable (OTP) memory, it can automatically configure itself after reset, with up to four different configurations available

4mm × 4mm 28-pin VFQFPN package

The RC32514A000GNL can be used as a frequency synthesizer to generate a local reference clock, as a jitter attenuator to perform local clearing and/or frequency conversion of the reference provided by the center, and as a synchronous Ethernet device clock to perform passband filtering and clearing of the reference provided by the network Or it can be used as a digital control oscillator (DCO) for frequency margin fine-tuning or OTN clock applications. The RC32514A000GNL is equipped with a built-in crystal oscillator, which can be used as a frequency reference for the on-chip PLL if necessary.

Application field

• Reference clock generator for 100Gbps / 400Gbps PHY or switch

• Adjustable OTN clock reference for OTU3 / OTU4 mappers

• Reference clock for programmable fiber module
