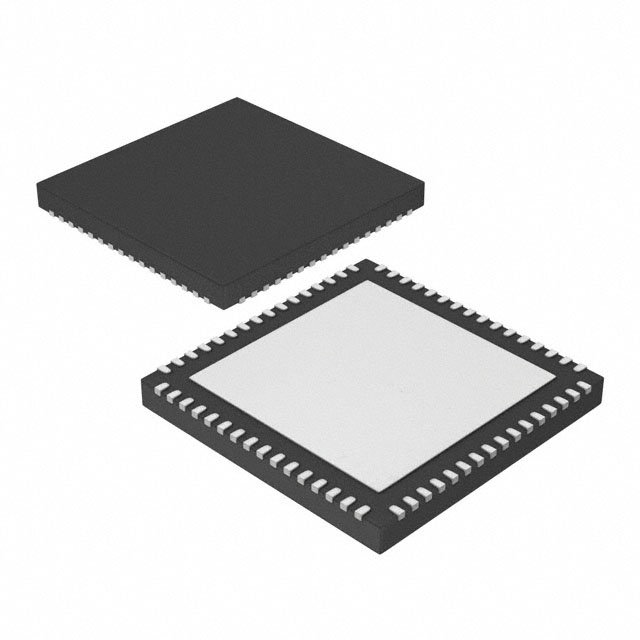

For picture reference, please see the specifications
< >

Commodity Model:RC32312A003GN1

Trade Name:Jitter attenuator

Brand:Renesas

Particular Year:25+

Package:64-VFQFPN,

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
RC32312A003GN1
Package
64-VFQFPN,
Describe
FemtoClock 3 ultra-low noise jitter attenuator and multi-frequency clock synthesizer

Product Description

The RC32312A003GN1 is a high-performance, low-power, compact jitter attenuator with network synchronization functionality, belonging to the FemtoClock™ 3 series. The RC32312A003GN1 supports SyncE network synchronization, which can output ultra-low jitter clocks and directly synchronize 112G pulse amplitude modulation (PAM) SerDes as well as CPRI/OBSAI, SONET/SDH and ADC/DAC. This makes it particularly suitable for 100G/200G/400G/800G carrier-grade switch line cards, switching cards, wired communication equipment, data center equipment and instrument applications.


In addition, the RC32312A003GN1 also supports locking to an external reference clock or freely running crystals/oscillators, and supports hitless switching between redundant reference clock sources. The RC32312A003GN1 has a wide range of applications, supporting SyncE clock generation, jitter attenuation, and can precisely manage phase deviations from input to input, input to output, and output to output.


Main features

Ultra-low jitter performance: The root mean square jitter (12KHz-20MHz) performance at a typical clock frequency of 312.5MHz can be as low as 50fs.

Diverse power supply options: The device can be easily operated with a single 1.8V power supply, and is compatible with the SCL/SDA 3.3V level interface (only the VDDD33_SERIAL pin is needed to use the 3.3V power supply).

Support for SyncE: It can perfectly support SyncE technology and further enhance its synchronization performance.

Support for DCO mode: Utilizing the DCO mode can bring greater flexibility and efficiency advantages.

The startup mode is flexible and configurable: With the support of external EEPROM, the configuration can be automatically loaded during the startup stage, thereby simplifying the configuration process.

Flexible communication interface: You can freely choose between SPI or I2C communication protocols.

Multiple OTP configurations: During the startup phase, up to four OTP configurations can be automatically loaded.

Clock input monitoring: Precisely monitor the clock input to ensure reliable and stable performance.

Phase slope limit (ns/s) : Supports smooth transition and adjustment of output phase in DPLL mode.

High-range loop bandwidth: The loop bandwidth can be flexibly adjusted within the range of 0.5Hz to 18kHz to meet various application requirements.

Support for combo mode: Flexible frequency support.
