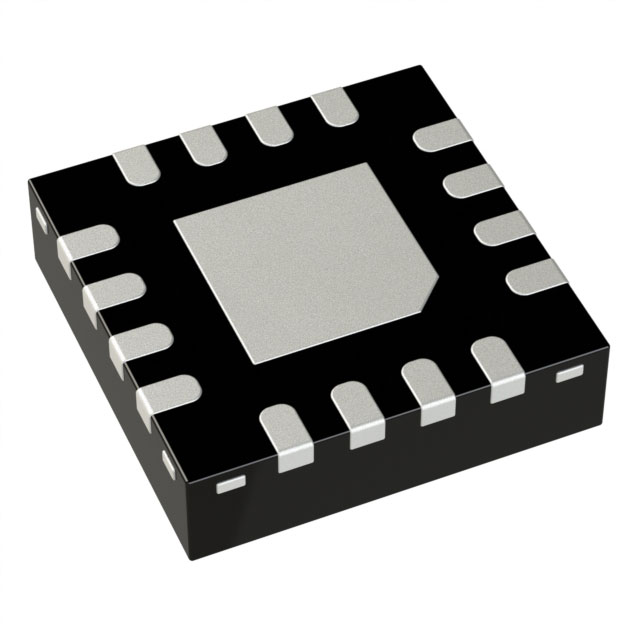

The HMC905LP3E is a SiGe BiCMOS low-noise programmable divider in a 3x3 mm leadless surface-mount package. Within an input frequency range of 400 MHz to 6 GHz, the circuit is programmable and supports division ratios from N = 1 to N = 4. The device features high output power (up to 6 dBm single-ended), extremely low SSB phase noise, and a 50% duty cycle, making it ideal for low-noise clock generation, LO generation, and LO drive applications. Power consumption and output power can be controlled via configurable bias and output power control features. The device integrates a shutdown feature, excellent input-to-output isolation, and fast start-up time. The HMC905LP3E is suitable for fast-switching ‘ping-pong’ applications.

HMC905LP3E Product Features

• Low noise floor: -164 dBc/Hz (10 MHz offset, N = 4) Programmable frequency

• Divider, N = 1, 2, 3, or 4

• Input frequency range: 400 MHz to 6 GHz

• Maximum output power: +6 dBm

• Sleep mode: Power consumption <1 μA

• 16-pin 3x3mm SMT package: 9mm²

HMC905LP3E Product Attributes

Product Type: Pre-divider

Maximum Operating Frequency: 6 GHz

Minimum Operating Frequency: 400 MHz

Division: 1, 2, 3, 4

Supply Voltage - Minimum: 4.75 V

Supply Voltage - Maximum: 5.25 V

Minimum Operating Temperature: -40°C

Maximum Operating Temperature:    +85°C

Operating Power Current:    100 mA

Operating Power Voltage:    5 V

Output Power:    3 dBm

Package/Enclosure:    QFN-16

Typical Applications

HMC905LP3E is suitable for:

• Low-noise floor oscillator generation

• Software-defined radio

• Clock generator

• Fast-switching synthesizers

• Military applications

• Test equipment

• Sensors
