HMC8192LG is a passive, wideband, inphase/quadrature (I/Q), monolithic microwave integrated circuit (MMIC) mixer that can be used either as an image rejection mixer for receiver operations or as a single-sideband upconverter for transmitter operations. With a radio frequency (RF) and local oscillator (LO) range of 20 GHz to 42 GHz, and an intermediate frequency (IF) bandwidth of dc to 5 GHz, the HMC8192LG is ideal for applications requiring a wide frequency range, excellent RF performance, and a simple design with fewer components and a small printed circuit board (PCB) footprint. A single HMC8192LG can replace multiple narrow-band mixers in a design.

Features Of HMC8192LG

Passive, wideband I/Q mixer

RF and LO range: 20 GHz to 42 GHz

Wide IF bandwidth of dc to 5 GHz

Single-ended RF, LO, and IF

Conversion loss: 9 dB typical, 20 GHz to 32 GHz

Image rejection: 25 dBc typical, 20 GHz to 32 GHz

Noise figure: 12 dB typical

Input IP3 (downconverter): 24 dBm typical, 20 GHz to 32 GHz

Input P1dB (downconverter) compression: 17 dBm typical, 20 GHz to 32 GHz

Input IP2: 55 dBm typical, 20 GHz to 32 GHz

LO to RF isolation: 42 dB, 20 GHz to 32 GHz

LO to IFx isolation: 45 dB, 20 GHz to 32 GHz

RF to IF isolation: 35 dB, 20 GHz to 32 GHz

Amplitude balance: ±1 dB typical

Phase balance (downconverter): ±8° typical

RF return loss: 12 dB typical

LO return loss: 10 dB typical

IFx return loss: 20 dB typical

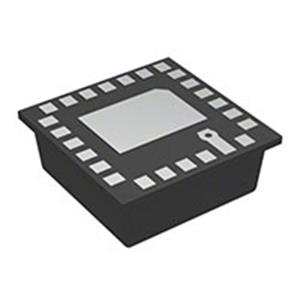

Exposed pad, 4.00 mm × 4.00 mm, 25-terminal LGA_CAV package

Applications Of HMC8192LG

Test and measurement instrumentation

Military, radar, aerospace, and defense applications

Microwave point to point base stations
