The SMIQ-5143H is a passive wideband in-phase/orthogonal (I/Q) mixer manufactured using GaAs HBT technology. This model can be used as a single-sidebar inverter for transmission applications or a mirror suppression mixer for receiver applications. The SMIQ-5143H is highly suitable for wideband frequency conversion applications that require inherent suppression of image signals and spurious mixed products. This mixer covers a wide frequency band, with RF and LO frequency ranges of 5 to 14 GHz, and IF frequency range of DC to 7 GHz.

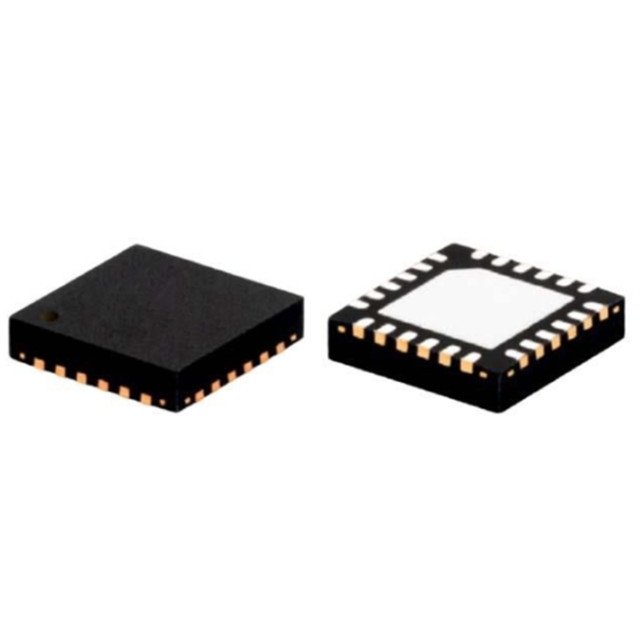

As a passive mixer, the noise figure of the SMIQ-5143H is lower than that of active mixers, providing an outstanding dynamic range for high-performance applications. This mixer adopts a compact 4x4mm 24-pin QFN type package and can operate without DC bias.

Main specifications

Radio frequency: 5 GHz to 14 GHz

Conversion loss - maximum: 9.9 dB

LO frequency: 5 GHz to 14 GHz

Medium frequency: 0 Hz to 14 GHz

Maximum operating temperature: + 105 ° C

Minimum operating temperature: -55 ° C

Installation style: SMD/SMT

Packaging/Cabinet: QFN-24

Trademark: Mini-Circuits

OIP3 - Third-order cut-off point: 27 dBm

Working power supply current: 49 mA

Product Type: RF Mixer

Application scenarios

The SMIQ-5143H mixer is suitable for wideband frequency conversion (such as transmission single-sideband frequency converters or reception image suppression mixers), and is widely used in satellite communications, radar, and electronic countermeasures, among other fields.
