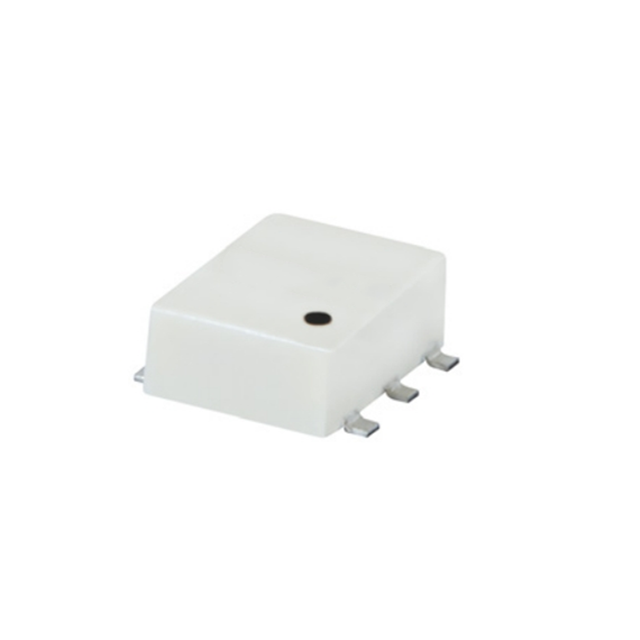

The ADE-30W device is a radio frequency mixer launched by Mini-Circuits Company. It adopts a double balanced mixing circuit design and is suitable for radio frequency signal mixing scenarios. The following are its core parameters:

Radio frequency: 300 MHz to 4 GHz

Conversion loss - maximum: 9.8 dB

LO frequency: 300 MHz to 4 GHz

Medium frequency: 0 Hz to 950 MHz

Maximum operating temperature: + 85 ° C

Minimum operating temperature: -40 ° C

Installation style: SMD/SMT

Packaging/Box: 7.87mm x 5.59mm x 4.11mm

Trademark: Mini-Circuits

OIP3 - Third-order cut-off point: 12 dBm

Product Type: RF Mixer

Main features

Low conversion loss, with a typical value of 6.8 dB.

Excellent L-R isolation, with a typical value of 35 dB.

• Thin packaging

• Wash with water

Protected by U.S. Patent 6,133,525

Target application

• Wireless communication

• PCN

• Instrument

• ISM
