Service Telephone:86-755-83294757

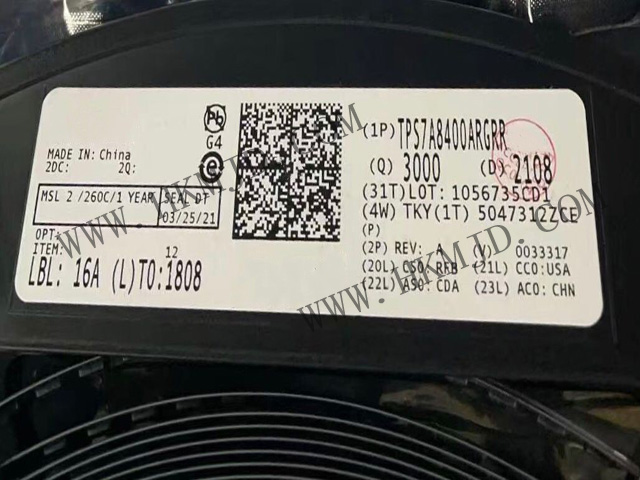

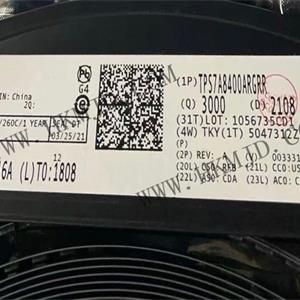

Trade Name:Low-dropout Voltage Regulator
Brand:TI
Particular Year:21+
Package:VQFN-20
Delivery Date:New and Original
Stock: 15800pcs
The TPS7A8400ARGRR is a low-noise, low-dropout linear regulator (LDO) that provides 3A of output current with a maximum dropout voltage of only 180mV. The device offers two output voltage ranges. The output voltage of the TPS7A8400A can be programmed via pins with a resolution of 50mV within the range of 0.8V to 3.95V, and can be adjusted via an external resistor divider within the range of 0.8V to 5.15V.
The TPS7A8400ARGRR combines low noise, high PSRR, and high output current capability, making it ideal for powering noise-sensitive components in high-speed communication, video, medical, or test and measurement applications. The TPS7A8400ARGRR offers high performance, suppressing phase noise and clock jitter generated by the power supply, making it ideal for powering high-performance serialisers and deserialisers (SerDes), analogue-to-digital converters (ADCs), digital-to-analogue converters (DACs), and RF components. The device offers high performance and an output capability exceeding 5V, making it particularly suitable for RF amplifiers.
Features
• Low dropout voltage: 180mV (maximum) at 3A current with bias
• Maximum accuracy of 0.75% across line, load, and temperature ranges with bias
• Output voltage noise: 4.4µVRMS
• Input voltage range:
– Without bias: 1.4V to 6.5V
– With bias: 1.1V to 6.5V
• TPS7A8400A output voltage range:
– Adjustable operating voltage: 0.8V to 5.15V
– ANY-OUT™ operating voltage: 0.8V to 3.95V
• Power supply ripple suppression:
– 40dB at 500kHz
• Excellent load transient response
• Adjustable soft-start surge control
• Open-drain power good (PG) output
Parameters
Product type: Low dropout regulator
Mounting style: SMD/SMT
Package/case: VQFN-20
Output current: 3 A
Number of outputs: 1 Output
Polarity: Positive
Input Voltage - Minimum: 1.1 V
Input Voltage - Maximum: 6.5 V
PSRR/Ripple Suppression — Typical: 25 dB
Output Type: Adjustable
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Reverse Voltage: 110 mV
Slew voltage - Maximum: 180 mV
Ib - Input bias current: 2.4 mA
Line regulation: 0.03 mV/V
Load regulation: 0.04 mV/A
Output voltage range: 800 mV to 5.15 V
Pd - Power dissipation: 900 mW
Applications
• Macro remote radio unit (RRU)
• Outdoor backhaul unit
• Active antenna system mMIMO (AAS)
• Ultrasonic scanner
• Laboratory and field instruments
• Sensors, imaging, and radar
