LTC3108IDE【ADI】Ultra-low voltage, boost converter and power manager, DFN-12

Product Details:

The LTC3108IDE is a highly integrated energy harvesting PMIC—DC/DC converter that uses a small-form-factor boost converter to provide a complete power management solution for wireless sensing and data acquisition applications. The LTC3108IDE's boost topology enables operation at input voltages as low as 20mV. The LTC3108IDE is housed in a small, thermally enhanced 12-pin (3mm x 4mm) DFN package.

LTC3108IDE Product Features:

Application: Energy Harvesting

Current - Supply: 3mA

Voltage - Supply: 20mV to 500mV

Operating Temperature: -40°C to 125°C

Mounting Type: Surface Mount

Package/Case: 12-WFDFN Bare Pad

Supplier Device Package: 12-DFN (4x3)

LTC3108IDE Product Features:

Operates from 20mV input

Complete energy harvesting power management system

Selectable VOUT: 2.35V, 3.3V, 4.1V, or 5V

LDO: 2.2V (at 3mA)

Logic-controlled output

Energy-saving output

Power good indicator

Features a compact boost transformer

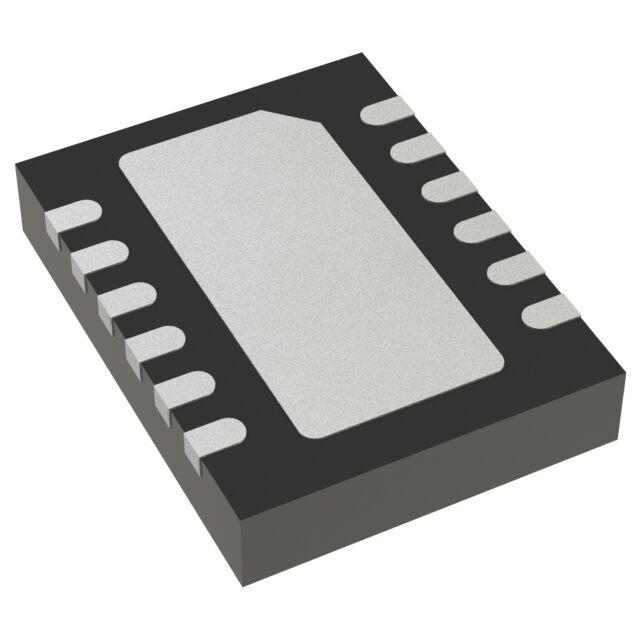

Small 12-pin (3mm x 4mm) DFN package
