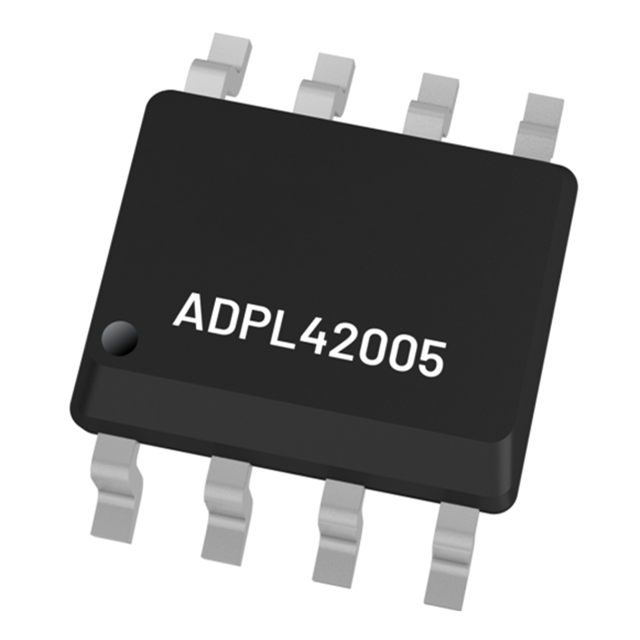

The ADPL42005ARDZ-3.0 product is a complementary metal-oxide-semiconductor (CMOS) low-dropout linear regulator with an operating voltage range of 4V to 20V, capable of providing an output current of up to 500mA. The ADPL42005ARDZ-3.0 is specifically designed for high-performance analog and mixed-signal circuits with an operating voltage range of 19V to 1.22V. With an advanced dedicated architecture, this voltage regulator can provide a high power supply rejection ratio and low noise, and can also achieve excellent line and load transient response with only 1 μF small ceramic output capacitors.

Technical specifications

Product: ADPL42005ARDZ-3.0

Output configuration: positive

Output type: Fixed

Number of voltage regulators: 1

Voltage - Input (maximum value) : 20V

Voltage - Output (minimum value/fixed) : 3V

Voltage - Output (maximum value) : -

Voltage drop (maximum value) : 0.6V @ 500mA

Current - Output: 500mA

Current - static (Iq) : 900 µA

Current - power supply (maximum value) : 1.6 mA

PSRR: -

Control characteristics: Enabled, good power supply

Protection functions: overcurrent, over-temperature, reverse current, short circuit

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

Packaging/Housing: 8-SOIC

Typical applications

Regulation for noise-sensitive applications: ADC, DAC circuits, precision amplifiers, high-frequency oscillators, clocks and PLL

Communication and infrastructure

Medical care and health care

Industry and instrumentation
