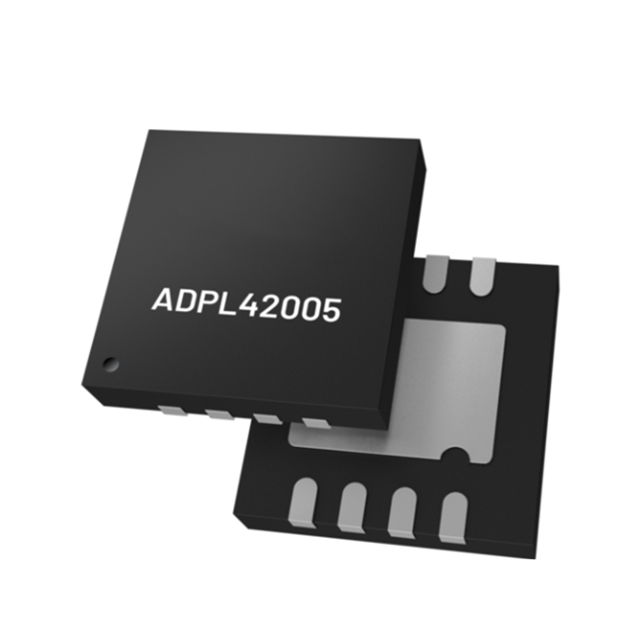

The ADPL42005ACPZ-3.0 is an LDO linear regulator specifically designed for high-performance analog and mixed-signal circuits with an operating voltage range of 19V to 1.22V. The following are its key features:

Input voltage range: 4V to 20V

Maximum output current of 500 mA

The fixed output version features low noise: 32μVrms

PSRR performance: 58dB (at 10kHz and VOUT=3.3V)

Reverse current protection

Low pressure difference: 400mV (at 500mA)

Initial accuracy: ±0.8%

Accuracy across the entire line, load and temperature range: -2% to +1% (TJ = -40 °C to 125°C)

Return current limiting and thermal overload protection

Low quiescent current IGND: 900μA (when VIN =10V and load =500mA)

Low turn-off current: <40μA (when VIN =12V), stable operation can be achieved when paired with a 1μF small ceramic output capacitor

Six fixed output voltage options: 1.5V, 1.8V, 2.5V, 3V, 3.3V and 5V

Adjustable output: 1.22V to VIN−VDO

User-programmable precision UVLO/ enable

Good power supply indicator light

8-lead LFCSP package

The ADPL42005ACPZ-3.0 offers six fixed output voltage options and adjustable versions. Through an external feedback voltage divider, the output voltage range can be adjusted from 1.22V to VIN − VDO.

The output noise voltage of ADPL42005ACPZ-3.0 is 32μVrms, which is independent of the output voltage. The good output of the digital power supply allows the power system monitor to check the operating status of the output voltage. The user-programmable precision undervoltage lock function helps with timing monitoring of multiple power supplies. Typical applications of the ADPL42005ACPZ-3.0 regulator include high-frequency oscillators, clocks, communications and infrastructure, healthcare, as well as industry and instrumentation.
