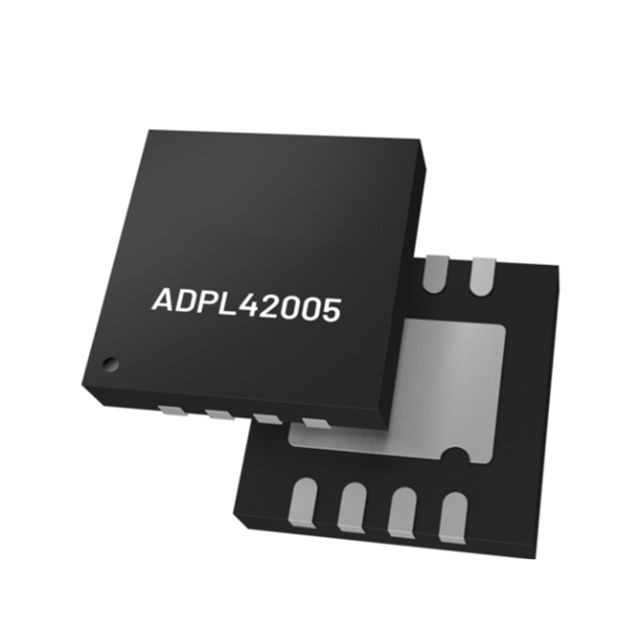

The ADPL42005ACPZ-1.8 is a complementary metal-oxide-semiconductor (CMOS), low-dropout linear regulator specifically designed for high-performance analog and mixed-signal circuits with an operating voltage range of 19V to 1.22V. The ADPL42005ACPZ-1.8 voltage regulator operates at a voltage range of 4V to 20V and can provide an output current of up to 500mA.

Technical specifications

Product: ADPL42005ACPZ-1.8

Type: Low-dropout voltage stabilizer

Output configuration: positive

Output type: Fixed

Number of voltage regulators: 1

Voltage - Input (maximum value) : 20V

Voltage - Output (minimum value/fixed) : 1.8V

Voltage - Output (maximum value) : -

Voltage drop (maximum value) : 0.6V @ 500mA

Current - Output: 500mA

Current - static (Iq) : 900 µA

Current - power supply (maximum value) : 1.6 mA

PSRR: 60dB to 50dB (10kHz to 100kHz)

Control characteristics: Enabled, good power supply

Protection functions: overcurrent, over-temperature, reverse current, short circuit

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

Packaging/Housing: 8-LFCSP

Application field

Voltage stabilizing solutions suitable for noise-sensitive applications:

ADC and DAC circuits, precision amplifiers, high-frequency oscillators, clocks and PLLS

Communication and infrastructure

Medical care and health care

Industry and instruments
