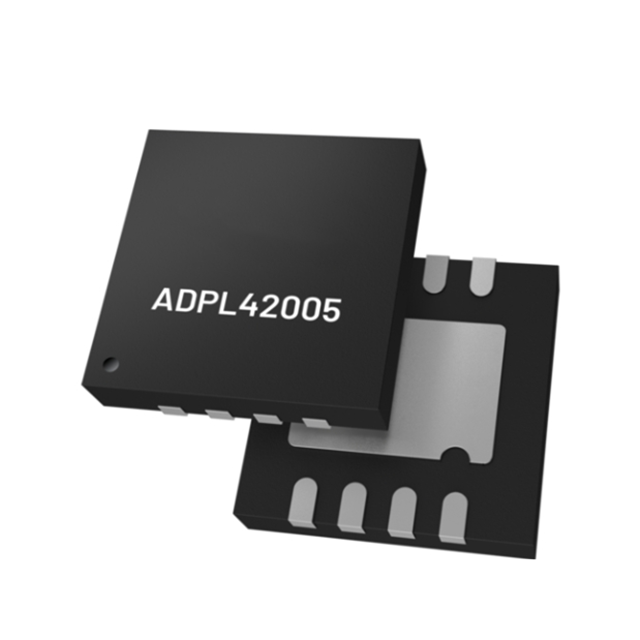

The ADPL42005ACPZ-2.5 is a low-noise LDO linear regulator launched by Analog Devices (ADI), specifically designed for high-performance analog and mixed-signal circuits with an operating voltage range of 19V to 1.22V. It has the following key characteristics:

Input voltage range: 4V to 20V

Maximum output current of 500 mA

Fixed output version of low noise: 32μVrms

PSRR performance: 58dB (at 10kHz and VOUT=3.3V)

Reverse current protection

Low pressure difference: 400mV (at 500mA)

Initial accuracy: ±0.8%

Precision alignment, load and temperature:

-2% to +1%, TJ= -40 °C to 125°C

Low quiescent current IGND: 900μA (when VIN =10V and load =500mA)

Low turn-off current: <40μA (when VIN =12V), stable operation is achieved by using a 1μF small ceramic output capacitor

Six fixed output voltage options: 1.5V, 1.8V, 2.5V, 3V, 3.3V and 5V

Adjustable output: 1.22V to VIN−~VDO~~~

Return current limiting and thermal overload protection

User-programmable precision UVLO/ enable

Good power supply indicator light

8-lead LFCSP package

In addition, the ADPL42005ACPZ-2.5 voltage regulator features multiple protection functions, including reverse current protection, return current limiting, and thermal overload

Protection. This ADPL42005 series voltage regulator features a PSRR performance of 58dB (at 10kHz), an initial accuracy of ±0.8%, a maximum output current of 500mA, and user-programmable precision UVLO/ enable. Typical applications of ADPL42005ACPZ-2.5 include high-frequency oscillators, clocks, communication and infrastructure, healthcare, as well as industry and instrumentation.
