The LT6023HDD is a low-power, high-slew-rate, precision operational amplifier. The amplifier's proprietary circuit topology delivers excellent slew rate under low static power dissipation conditions without compromising accuracy or stability time metrics. Additionally, the proprietary input stage circuitry maintains high input impedance even with input voltage steps as high as 5V. The combination of precision performance and fast stabilisation makes this device an ideal choice for multiplexing applications.

Due to its low static current and ability to operate on power supplies as low as 3V, the LT6023HDD is suitable for portable systems.

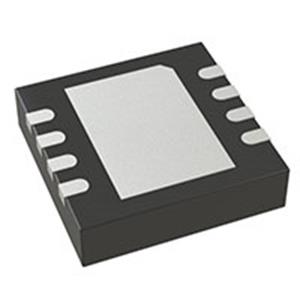

The LT6023HDD is available in a compact 8-pin DFN package.

LT6023HDD Product Attributes

Manufacturer: Analog Devices Inc.

Product Type: Precision Amplifier

Number of Channels: 2 Channel

GBP (Gain-Bandwidth Product): 40 kHz

SR - Slew Rate:    1.45 V/us

Ib - Input Bias Current:    100 pA

Supply Voltage - Maximum:    30 V

Supply Voltage - Minimum:    3 V

Operating Supply Current:    18 uA

Output Current per Channel:    15 mA

CMRR - Common-Mode Rejection Ratio:    132 dB

en - Input Voltage Noise Density:    132 nV/√Hz

Package/Enclosure:    DFN-8

Mounting Style:    SMD/SMT

Series:    LT6023

LT6023HDD Applications

High-Precision Signal Processing

DAC Amplifiers

Multiplexed ADC Applications

Low-Power Portable Systems

Low-Power Wireless Sensor Networks
