The PCM3140QRGERQ1 is an automotive-grade four-channel, 768kHz Burr-Brown™ audio analog-to-digital converter (ADC) with 106dB SNR. This audio ADC supports line and microphone inputs, allowing for both single-ended and differential input configurations. The PCM3140QRGERQ1 also supports simultaneous sampling of up to four analog channels or eight digital channels for pulse density modulation (PDM) microphone inputs. These high-performance audio ADCs can be powered by a single supply of 3.3V or 1.8V. This makes the device an excellent choice for audio systems with limited space in far-field microphone recording applications. The PCM3140QRGERQ1 device meets the requirements of automotive applications.

Key parameters

Type: Audio

Number of channels: 4

Resolution (bits) : 16 b, 20 b, 24 b, 32 b

Sampling rate (per second) : 768k

Data interfaces: I2C, I2S, TDM

Power supply voltage source: Single power supply

Voltage - Power supply: 1.7V - 1.9V, 3V - 3.6V, 1.65V - 1.95V, 3V - 3.6V

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

Grade: Automotive grade

Qualification: AEC-Q100

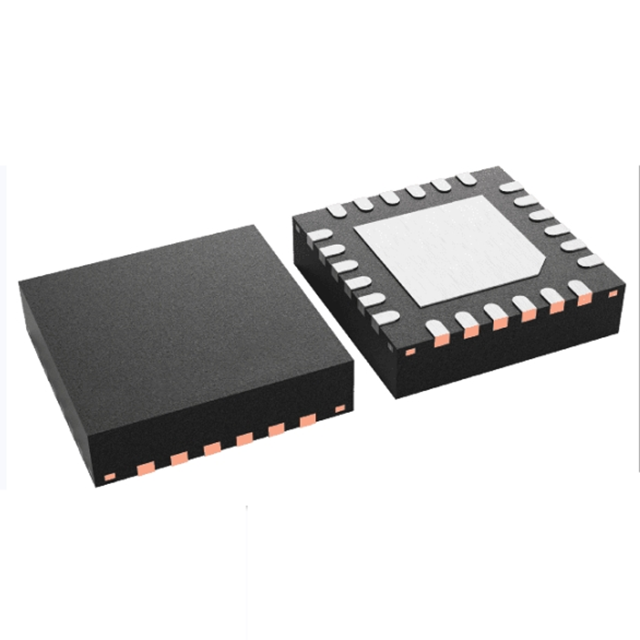

Package/Housing: 24-VQFN (4x4)

Typical applications

Microphone array system

Voice activation of the digital assistant

Teleconference system

Security and monitoring systems
