PCM1841QRGERQ1: 32-bit, 192kHz, quad-channel automotive-grade audio analogue-to-digital converter (ADC)

Type: PCM1841QRGERQ1

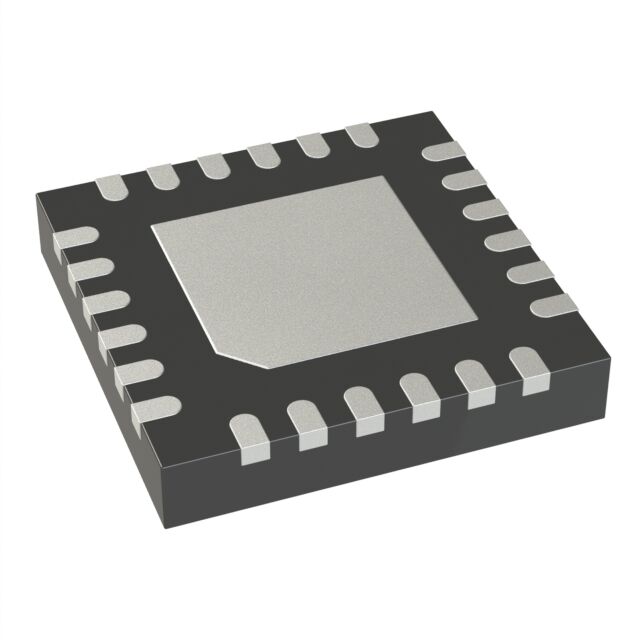

Package: VQFN-24

Type: Audio analogue-to-digital converter (ADC)

DESCRIPTION DETAILS:

The PCM1841QRGERQ1 is a high-performance, Burr-Brown™ audio analog-to-digital converter (ADC) that supports simultaneous sampling of up to four analog channels. The device supports differential line and microphone inputs with 2VRMS full-scale signals, integrated microphone bias voltages, phase-locked loops (PLLs), DC-removed high-pass filters (HPFs), and sample rates up to 192kHz. The device supports Time Division Multiplexing (TDM), I2S, or Left Balanced (LJ) audio formats with selectable hardware pin levels.

PCM1841QRGERQ1 Product Features:

Multi-Channel High-Performance ADC:

4-channel analogue microphone input or line input

ADC Differential Line and Microphone Input Performance:

Dynamic Range:

123dB, with dynamic range enhancer enabled

113dB, with dynamic range enhancer disabled

THD+N: -98dB

ADC Differential 2VRMS Full Scale Inputs

ADC Sample Rate ( fS) = 8kHz to 192kHz

Hardware Pin Control Configuration

Linear phase or low latency filter selectable

Flexible Audio Serial Data Interface:

Choice of controller or target interfaces

32-bit, 4-channel TDM

32-bit, 2-channel TDM

32-bit, 2-channel I2S

32-bit, 2-channel Left Balance (LJ)

Auto power down on audio clock loss

Integrated high performance audio PLL

Low Noise Microphone Bias 2.75V output

Single-supply operation: 3.3V

I/O supply operation: 3.3V or 1.8V

Power consumption at 3.3V AVDD supply voltage:

17.0 mW/channel at 16kHz sampling rate

18.4 mW/channel at 48kHz sampling rate
