The PCM1840IRTWR is a high-performance Burr-Brown™ audio analog-to-digital converter (ADC) that supports synchronous sampling of up to four analog channels. This device supports differential line and microphone input, featuring a full-scale signal of 2VRMS. It integrates features such as microphone bias voltage, phase-locked loop (PLL), and DC-removed high-pass filter (HPF), and supports a sampling rate up to 192kHz.

The PCM1840IRTWR supports Time Division Multiplexing (TDM), I2S or Left Balanced (LJ) audio formats, and the hardware pin levels are selectable. In addition, the PCM1840IRTWR also supports master-slave mode selection, thereby enabling audio bus interface operation.

Technical Specification

Type: ADC, Audio

Number of channels: 4

Resolution (bit) : 32 b

Sampling rate (per second) : 192kHz

Data interface: I2S, TDM

Power supply voltage source: analog and digital

Voltage - Power supply: 3V to 3.6V, 3V to 3.6V

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

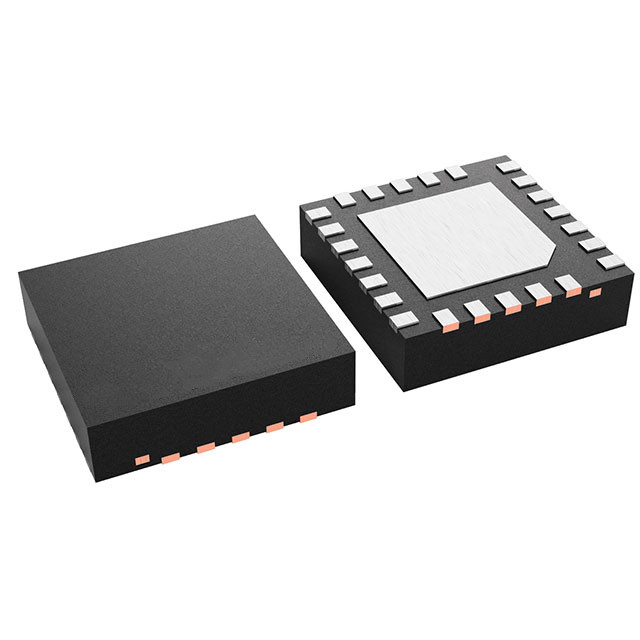

Package/Shell: 24-WFQFN

In addition, the PCM1840IRTWR is suitable for various applications that require high-precision audio conversion, such as:

Far-field microphone recording ‌ : Its high performance features and low latency filter make it outstanding in far-field microphone recording.

Space-constrained Audio System ‌ : Single power supply and compact package make it suitable for space-constrained applications.

High Fidelity Audio equipment ‌ : 192kHz sampling rate and 32-bit resolution ensure high fidelity audio output.
