The PCM5140QRGERQ1 device is an automotive-grade four-channel, 768kHz Burr-Brown™ audio analog-to-digital converter (ADC) with a 120dB SNR launched by (TI). The following are its key parameters

Type: Audio

Number of channels: 4

Resolution (bits) : 16 b, 20 b, 24 b, 32 b

Sampling rate (per second) : 768k

Data interfaces: I2C, I2S, TDM

Power supply voltage source: Single power supply

Voltage - Power supply: 1.7V - 1.9V, 3V - 3.6V, 1.65V - 1.95V, 3V - 3.6V

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

Grade: Automotive grade

Qualification: AEC-Q100

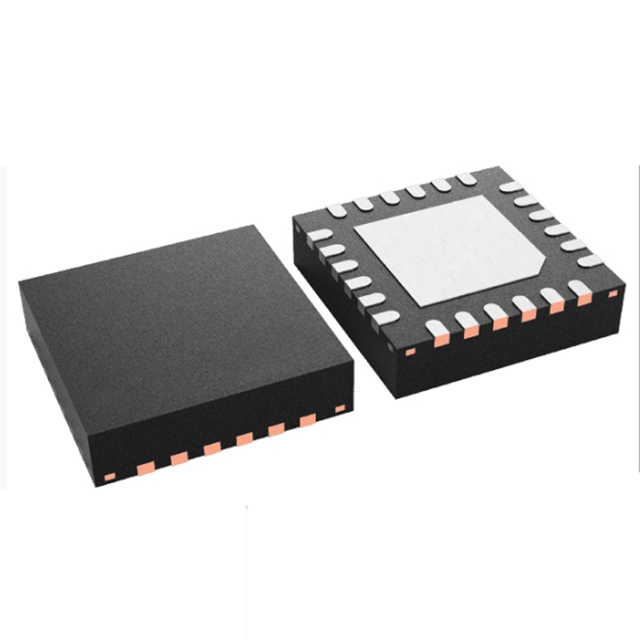

Package/Housing: 24-VQFN (4x4)

In addition, the PCM5140QRGERQ1 integrates programmable channel gain, digital volume control, programmable microphone bias voltage, phase-locked loop (PLL), programmable high-pass filter (HPF), dual second-order filters, low-latency filter mode, and can achieve a sampling rate of up to 768kHz. And it can achieve a sampling rate as high as 192kHz. The PCM5140QRGERQ1 supports Time Division Multiplexing (TDM), I2S or Left Balanced (LJ) audio formats and can be controlled via I2C or SPI. These integrated high-performance features, along with the function of being powered by a single 3.3V or 1.8V supply, make the PCM5140QRGERQ1 device highly suitable for space-constrained audio systems in far-field microphone recording applications.

Application scenarios

The PCM5140QRGERQ1 is suitable for scenarios with high requirements for performance and stability, such as automotive audio systems and industrial-grade audio acquisition devices.
