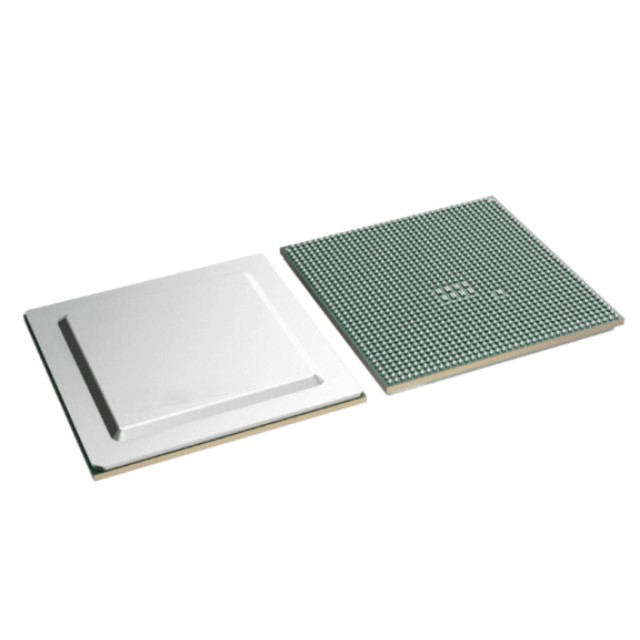

The AM6958ATGGHAALYR scalable processor family features the evolving Jacinto™ 7 architecture for intelligent vision camera applications with a general purpose octa-core, 64-bit Arm Cortex-A72 processor with graphics, PCIe Gen 3, Ethernet, and USB 3.0 capabilities.

AM6958ATGGHAALYR Product Features:

Processor Cores:

Up to eight-core, 64-bit Arm Cortex-A72 microprocessor subsystems with up to 2GHz performance

2MB of L2 cache shared by each Quad-Core Cortex®-A72 cluster

2MB of L2 cache shared by each Cortex®-A72 cores with 32KB L1 data cache and 48KB L1 instruction cache

Up to four deep learning accelerators:

Up to 8 trillion operations per second (TOPS) per accelerator

Total of 32 trillion TOPS

Dual-core Arm Cortex-R5F MCUs with up to 1.0GHz 16KB L2 L2 cache in general-purpose compute partition with FFI 1.0GHz

16KB L1 data cache, 16KB L1 instruction cache, and 64KB L2 TCM

Dual-core Arm® Cortex®-R5F MCUs up to 1.0GHz with support for device management

32K L1 data cache, 32K instruction cache, and 64K L2 TCM, with SECDED ECC on all memories

Up to Two Vision Processing Accelerators (VPACs) with Image Signal Processor (ISP) and multiple Vision Assist Accelerators

ISP processes 480 million pixels per second

Supports up to 16-bit input RAW format

AM6958ATGGHAALYR Applications:

Industrial:

Machine Vision Cameras and Computers

Smart Shopping Carts

Retail Automation

Smart Agriculture

Video Surveillance

Traffic Surveillance

Autonomous Mobile Robots (AMR)

Drones

Industrial Transportation

Industrial Human Machine Interface (HMI)

Industrial PCs
