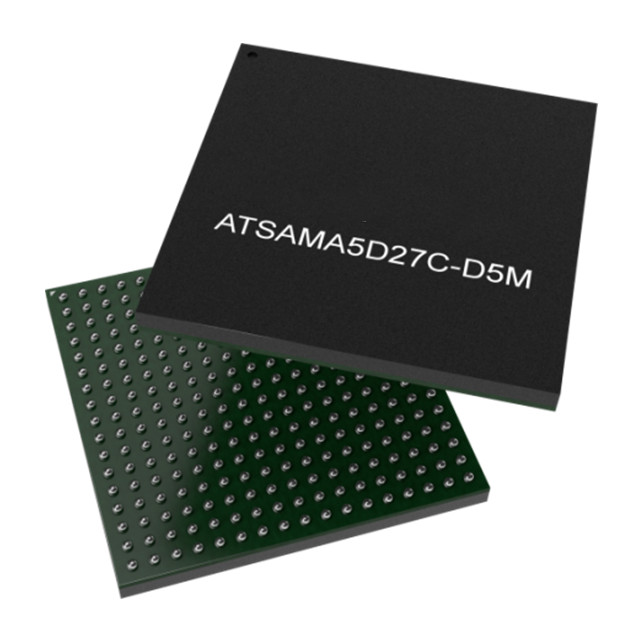

The ATSAMA5D27C-D5M-CU device is a high-performance, low-power ARM Cortex-A5 microprocessor (MPU) launched by Microchip, mainly targeting embedded system applications. The following are its core parameters:

Core processor: ARM® Cortex®-A5

Number of cores/bus width: 1 core, 32-bit

Speed: 500MHz

Coprocessor /DSP: Multimedia NEON™ MPE

RAM controllers: LPDDR1, LPDDR2, LPDDR3, DDR2, DDR3, DDR3L, QSPI

Graphics acceleration: Yes

Display and interface controllers: keyboard, LCD, touch screen

Ethernet: 10/100Mbps (1)

SATA: -

USB: USB 2.0 + HSIC

Voltage - I/O: 3.3V

Operating temperature: -40°C to 85°C (TA)

Security features: ARM TZ, boot security, cryptographic technology, RTIC, secure fuse box, secure JTAG, secure memory, secure RTC

Installation type: Surface mount type

Device packaging: 289-LFBGA (14x14)

Additional interfaces: I2C, SMC, SPI, UART, USART, QSPI

The ATSAMA5D27C-D5M-CU processor integrates modules such as the Arm TrustZone® security system, tamper-proof detection, secure data storage, and secure boot. In addition, it also supports acceleration of encryption algorithms such as AES, SHA and TRNG (Random Number Generator).

Application field

The ATSAMA5D27C-D5M-CU is widely used in industrial equipment, smart home devices and Internet of Things terminals that require high-performance computing and security guarantees. ‌
