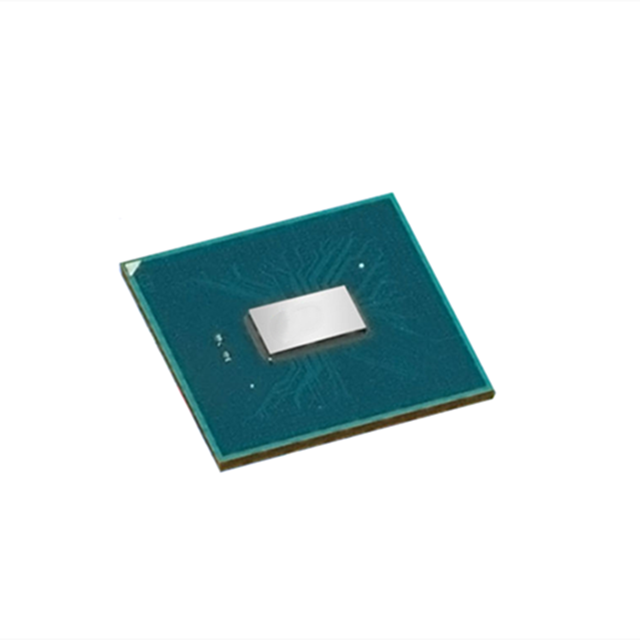

The R9A09G087M04GBG is an advanced high-end MPU that provides high speed and real-time operation. Equipped with industrial Ethernet, it provides complex network functions required by controllers and devices, and meets the requirements of programmable logic controllers (PLC) and motion controllers. This processor possesses the processing power and peripheral functions required for industrial robots, motion controllers, PLCS and other controllers.

In addition, R9A09G087M04GBG also offers 2 PCIe Gen3 channels, 2 xSPI channels and other high-speed interfaces. A single chip can achieve multi-axis motor control, reducing the number of BOM components, which helps to lower power consumption and shrink the size of the circuit board.

Main specifications

Core processor: ARM® Cortex®-A55

Number of cores/bus width: 1 core, 64-bit

Speed: 1.2GHz

Coprocessor /DSP: ARM® Cortex®-R52

RAM controller: LPDDR4, LPDDR4x

Graphics acceleration: None

Display and interface controller: LCD

Ethernet: 10/100/1000 MBPS (4)

SATA: -

USB: USB 2.0 (1

Voltage - I/O: 1.8V, 3.3V

Operating temperature: -40°C to 125°C (TJ)

Security features: AES, ECC, SHA, TRNG

Installation type: Surface mount type

Package/Housing: 576-FCBGA (21x21)

Additional interfaces: DMA, I2C, I2S, MMC/SD/SDIO, PCIe, SPI, UART

Application field

The R9A09G087M04GBG high-end MPU is specifically designed for the industrial control field. Its application areas include:

PLC

Motion controller

AGV (Automated Guided Vehicle) /AMR (Autonomous Mobile Robot)

Multi-axis servo

CNC machine tool

Ethernet switch

Gateway
