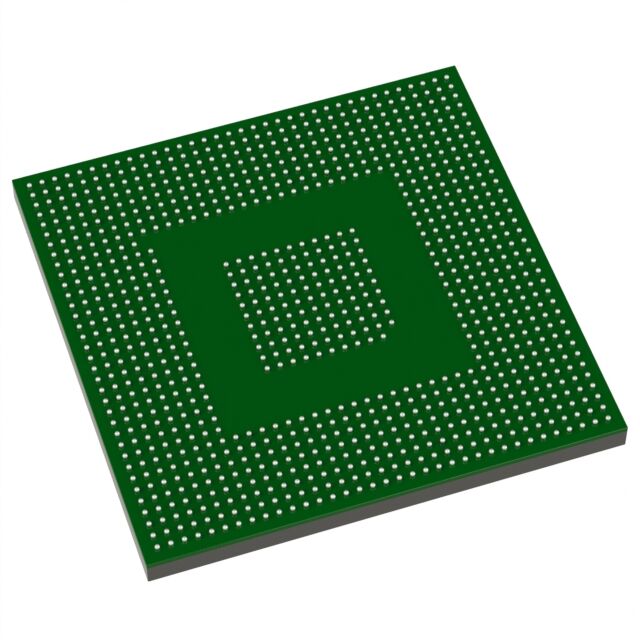

The R8A774E1HA01BN is a high-performance RZ/G2H microprocessor with quad-core Arm Cortex-A57 and quad-core Arm Cortex-A53 cpus, specifically designed for high-performance embedded systems. In addition, the R8A774E1HA01BN processor also features 3D graphics and 4K video encoders/decoders.

Main specifications

Core processors: ARM® Cortex®-A53, ARM® Cortex®-A57

Number of cores/bus width: 4,4 cores, 64-bit

Speed: 1.2GHz, 1.5GHz

Coprocessor /DSP: ARM® Cortex®-R7

RAM controller: LPDDR4

Graphics acceleration: Yes

Display and interface controller: LVDS, MIPI-CSI

Ethernet: 10/100Mbps (1)

SATA: SATA 16Gbps (1)

USB: USB 2.0 OTG (2), USB 3.0 (1)

Voltage - I/O: 3.3V

Operating temperature: -40°C to 85°C

Security features: AES, ARM TZ, Hash, RSA, Secure Boot, TRNG

Installation type: Surface mount type

Package: 1022-FCBGA (29x29)

Additional interfaces: CANbus, DMA, I2C, I2S, MMC/SD/SDIO, PCI, SPI, UART

Application field

R8A774E1HA01BN is widely used in the following fields:

High-performance human-machine interface (HMI) system

An expandable human-machine interface SMARC SoM with AI capabilities

TQ-Systems Embedded Module TQMaRZG2

Industrial gateway based on Wi-Fi 6

Wi-fi-connected retail scale

Wireless video game table
