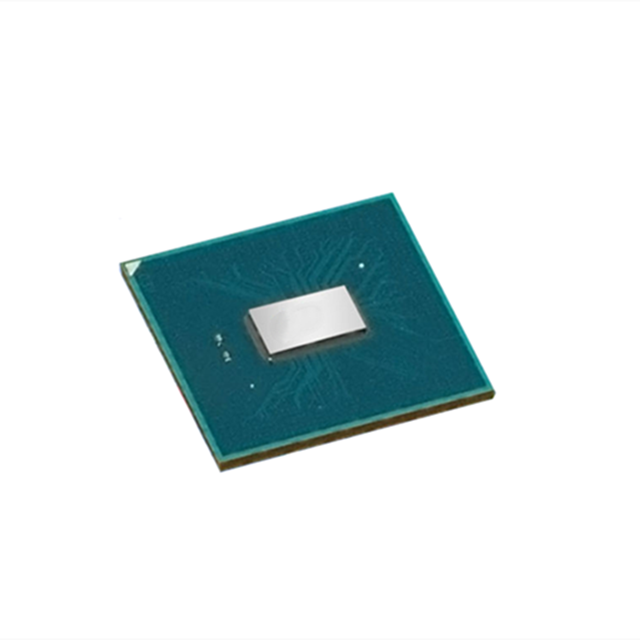

R9A09G087M24GBG is a high-end MPU proposed by Renesas, equipped with industrial Ethernet, providing high-performance application processing and real-time operation. It belongs to the RZ/N2H series and is specifically designed for the industrial control field, supporting real-time operating systems and complex network functions. The following are its main features:

CPU: Arm Quad Cortex-A55 x 4, with a maximum operating frequency of 1200MHz

CPU: Arm Dual Cortex-R52, with a maximum operating frequency of 1000MHz

Memory: Each R52 core has 576KB of tightly coupled memory (with ECC) and 2MB of built-in RAM (with ECC)

LPDDR4 SDRAM memory interface

Trigonometric function accelerator

The 3-port Gigabit Ethernet switch is equipped with TSN and 3 Ethernet GMACs

Industrial EtherNet: EtherCAT®, PROFINET® RT/IRT, EtherNet/IP™, etc.

Encoder interface: 14ch (supports A-format™, EnDat, BiSS®, HIPERFACE® DSL, FA-CODER)

Motor control with up to 6 axes

Octa/Quad SPI support

ADC: 12-bit x 3 units

ΔΣ I/F: 23ch

Package: 576-pin FCBGA

Voltage: 0.8V core 1.1V DDR 1.8V PLL, OSC, USB I/O; 3.3V GPIO, xSPI, RMII, MII

The R9A09G087M24GBG microprocessor also offers 2 PCIe Gen3 channels, 2 xSPI channels and other high-speed interfaces. A single chip can achieve multi-axis motor control, reducing the number of BOM components, which helps to lower power consumption and shrink the size of the circuit board.

Application scenarios

The R9A09G087M24GBG high-end MPU is suitable for scenarios such as industrial robots, programmable logic controllers (PLCS), and motion controllers. Its single-chip integrated design reduces circuit board space and power consumption. ‌
