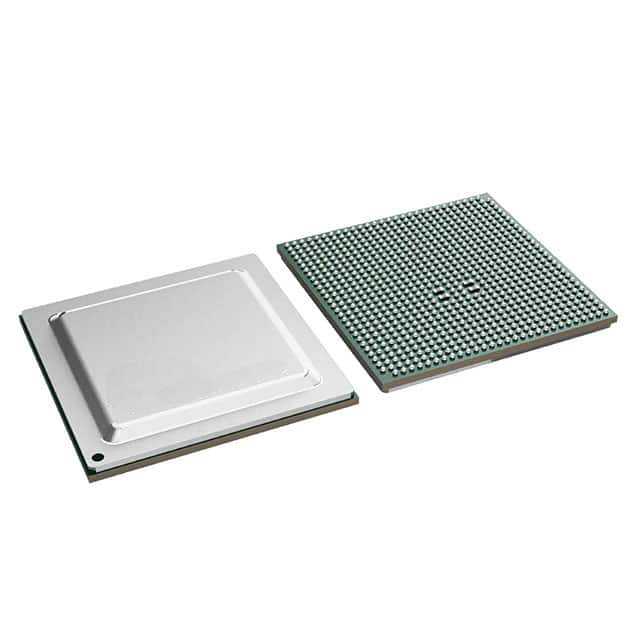

DRA829JMTGCALFRQ1 Dual-Core Arm Cortex-A72, Quad-Core Cortex-R5F Microprocessor, FCBGA-827

DRA829JMTGCALFRQ1 Product Features:

Processor Cores:

Dual-Core 64-bit Arm Cortex A72 microprocessor subsystem with performance up to 2.0GHz

1MB L2 shared cache per dual-core Arm Cortex-A72 cluster

32KB L1 data cache and 48KB L1 instruction cache per Cortex-A72 core

Six Arm Cortex-R5F MCUs with performance up to 1.0GHz

16K instruction cache, 16K data cache, 64K L2 TCM

Two Arm Cortex-R5F MCUs in isolated MCU subsystem

Four Arm Cortex-R5F MCUs in general-purpose compute partition

Up to 8MB of on-chip L3 RAM with ECC and coherency

ECC error protection

Shared coherency cache

Support for internal DMA engine

External Memory Interface (EMIF) module (with ECC) LPDDR support with ECC)

Supports LPDDR4 memory types

Supports speeds up to 4266MT/s

32-bit data bus with inline ECC, data rates up to 14.9GB/s

Related information:

The DRA829 processor, based on the Arm® v8 64-bit architecture, provides advanced system integration to reduce system cost in automotive and industrial applications. Integrated diagnostics and functional safety features meet ASIL-B/C or SIL-2 certifications/requirements. The integrated microcontroller (MCU) island eliminates the need for an external system MCU, and features a Gigabit Ethernet switch and PCIe hub to support network use cases requiring large amounts of data bandwidth. Up to four Arm Cortex-R5F subsystems manage low-level, timing-critical processing tasks and make the Arm Cortex-A72 application-independent.
