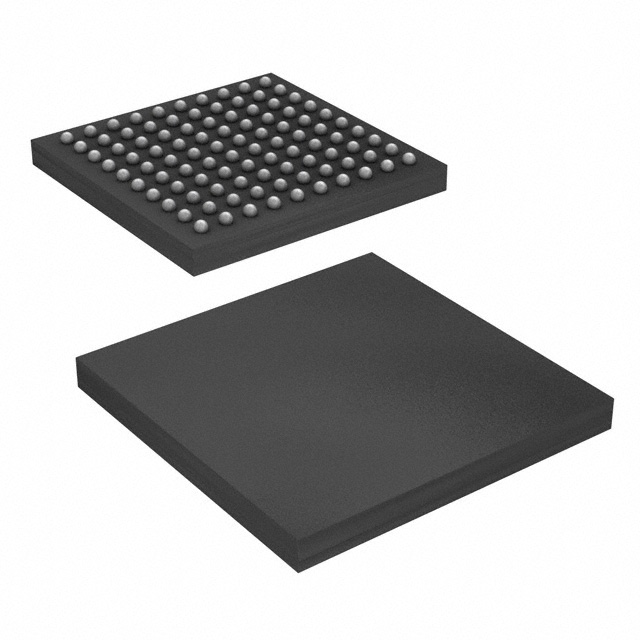

For picture reference, please see the specifications
< >

Commodity Model:8V19N480BDGI

Trade Name:Jitter attenuator

Brand:Renesas

Particular Year:25+

Package:100-CABGA

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
8V19N480BDGI
Package
100-CABGA
Describe
Single-channel, clock jitter attenuator IC 4:18 1.5GHz 100CABGA

Product Description

The 8V19N480BDGI is a fully integrated femtosecond jitter attenuator and clock frequency synthesizer, designed as a high-performance clock solution for conditioning and frequency/phase management of radio equipment boards in wireless base stations. This product has been optimized to provide the outstanding phase noise performance required for the implementation of GSM, WCDMA, LTE and LTE-A radio boards. The 8V19N480BDGI supports JESD204B subclass 0 and 1 clocks.


The 8V19N480BDGI has the following performance parameters:

Type: Drift attenuator

PLL: Yes

Input: LVDS, LVPECL

Output: LVDS, LVPECL

Number of circuits: 1

Ratio - Input: Output: 4:18

Differential - Input: Output: Yes/None

Frequency - Maximum: 1.5GHz

Frequency divider/frequency doubler: Yes/No

Voltage - Power supply: 3.3V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Packaging/Housing: 100-TBGA


In addition, the 8V19N480BDGI is configured via a three-wire SPI interface and reports the locked and signal loss status through internal registers and lock detection (lock) output. Changes in internal state bits can also be reported through nINT output.


Application field

The 8V19N480BDGI is highly suitable for driving converter circuits in wireless infrastructure, radar/imaging, and instrumentation/medical applications.
