Trade Name:Clock Buffer
Brand:Renesas
Particular Year:25+

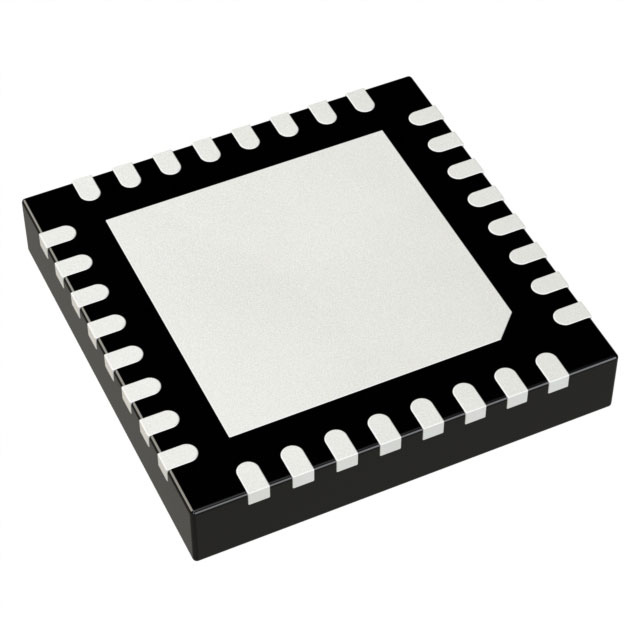

Package:VFQFN-32
Delivery Date:New and original
Stock: 2000pcs
The 8P79818NLGI clock buffer uses 1 or 2 reference clocks, which are selected through pin or register selection and generate up to 8 outputs, which may be the same as the reference frequency or integer divider version.
The 8P79818NLGI supports two output groups, each with its own voltage divider and power supply. All the outputs in a group will generate the same output frequency, but each output can be independently controlled for output type, output enable or even off.
In addition, the 8P79818NLGI supports a serial port for configuring parameters at runtime. The serial port can be selected to use either the I2C or SPI protocol. After power-on, all outputs will appear in LVDS mode and can be programmed to other configurations through the serial port. The output can be enabled or disabled under the control of the OE input pin.
Key parameters
Type: Allocator
Number of circuits: 1
Ratio - Input: Output: 2:8
Differential - Input: Output: Yes/Yes
Input: CML, HCSL, LVCMOS, LVDS, LVPECL
Output: CML, HCSL, LVCMOS, LVDS, LVPECL
Frequency - Maximum value: 700 MHz
Voltage - Power supply: 1.71V to 3.465V
Operating temperature: -40°C to 85°C (TA)
Installation type: Surface mount type
Package/Housing: 32-VFQFN
Product Features of 8P79818NLGI
Two differential inputs support LVPECL, LVDS, HCSL or LVCMOS reference clocks
Through pin or register selection, choose which of the two input clocks is used as the reference clock for which frequency divider
Generate 8-channel differential output or 8-channel LVCMOS output, with LVCMOS only available on Group A
The outputs are arranged in 2 groups, with 4 outputs in each group
Output enable control pins
Registers can be programmed through the I2C/SPI serial port
Core supply voltages of 3.3V, 2.5V or 1.8V
Ambient operating temperature: -40°C to +85°C
Lead-free (RoHS 6) packaging
Model
Brand
Package
Quantity
Describe
Renesas
48-VFQFPN
2000
8-channel output DB800ZL PCIe zero-latency/fan-out clock buffer
Renesas
VFQFPN-32
2000
Low Additive Jitter 2:8 Buffer with Universal Differential Outputs
