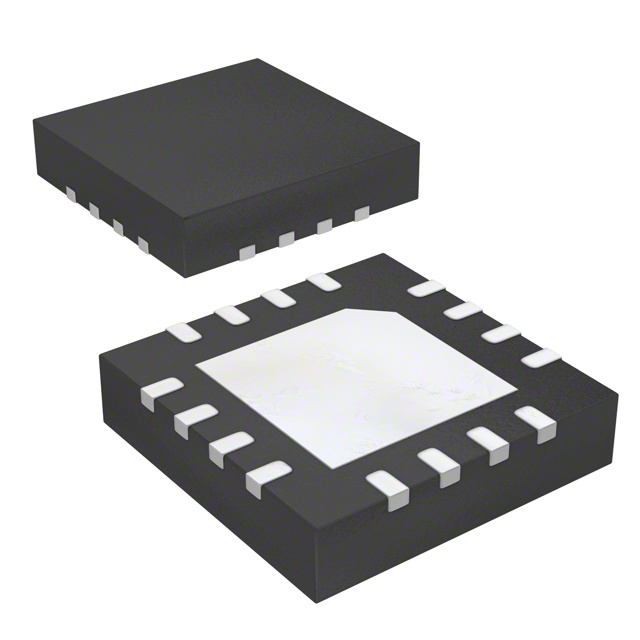

The 854S712AKILF is a differential, high-speed 1:2 data/clock fan-out buffer and line driver. The output supports pre-emphasis to drive the backplane and long transmission lines, while reducing the interference effect between symbols. The pre-weighting level can be configured to optimize for low bit error rate or low power consumption. Pre-weighting uses an increased output voltage swing for the commutation position.

The 854S712AKILF is optimized for data rates up to 4.5Gbps (NRZ), deterministic jitter in data applications, and low additional jitter in clock applications. The output complies with the LVDS standard, while the differential input is compatible with various signal levels, such as LVDS, LVPECL and CML. Internal input termination, bias voltage output for AC coupling and small package (VFQFN) support space-saving circuit board design. The 854S712AKILF is powered by a 3.3V supply and supports an industrial temperature range of -40°C to 85°C.

The performance parameters of 854S712AKILF are as follows:

Type: Fan-out buffer (allocated)

Number of circuits: 1

Ratio - Input: Output: 1:2

Differential - Input: Output: Yes/Yes

Input: CML, LVDS, LVPECL

Output: LVDS

Frequency - Maximum: 3 GHz

Voltage - Power supply: 3.135V to 3.465V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Package/Housing: 16-VFQFN
