The 8SLVD2104NBGI is a high-performance differential dual-channel 1:4 LVDS fan-out buffer. This device is designed for high-frequency, extremely low additive phase noise clock and fan-out of data signals. The following are its key parameters:

Type: Fan-out buffer (allocated)

Number of circuits: 2

Ratio - Input: Output: 1:4

Differential - Input: Output: None/None

Input: LVDS, LVPECL

Output: LVDS

Frequency - Maximum: 2 GHz

Voltage - Power supply: 2.375V to 2.625V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

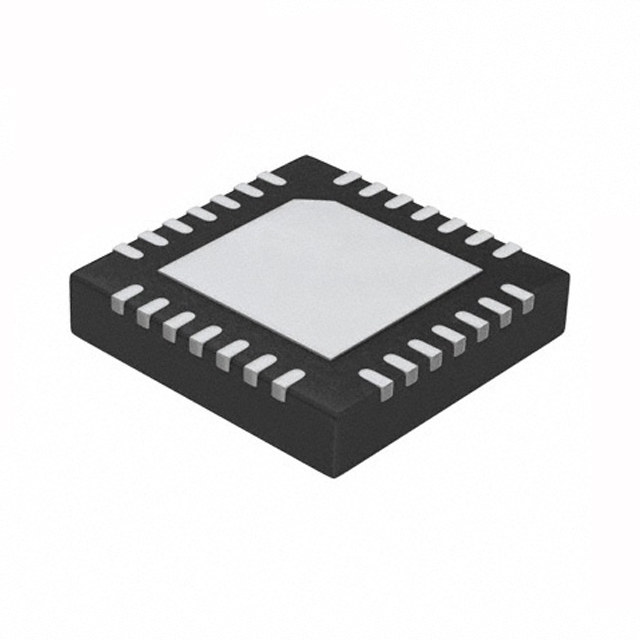

Packaging/Housing: 28-WFQFN

The 8SLVD2104NBGI is powered by a 2.5V power supply. The guarantee of output-to-output and device-to-device skew characteristics makes the 8SLVD2104NBGI highly suitable for clock distribution applications that require clear performance and repeatability. Two independent buffers each have four low-skew outputs. The integrated bias voltage generator can easily achieve the interface between single-ended signals and device inputs. This device has been optimized for low power consumption and low additive phase noise.

Application scenarios

The 8SLVD2104NBGI clock buffer is specifically designed for systems that require precise clock distribution, such as high-speed data transmission, video processing, and high-precision clock networks. It can effectively reduce signal loss and ensure multi-node synchronization.
