The 8S89832AKILFT is a high-speed 1:4 differential to LVDS fan-out buffer. This product has been mainly optimized for high speed and extremely low output offset, making it suitable for demanding applications such as SONET, 1Gb and 10Gb Ethernet, and Fibre Channel. The internally terminated differential input and VREF_AC pin allow other differential signal series (such as LVPECL, LVDS and SSTL) to be easily connected to the input with minimal external components. The 8S89832AKILFT also has an output enable pin that can be used for system testing and debugging. The 8S89832AKILFT is available in a small 3mm x 3mm 16-pin VFQFN package, making it highly suitable for space-constrained applications.

Main specifications

Type: Fan-out buffer (allocated)

Number of circuits: 1

Ratio - Input: Output: 1:4

Differential - Input: Output: Yes/Yes

Input: LVDS, LVPECL, SSTL

Output: LVDS

Frequency - Maximum: 2 GHz

Voltage - Power supply: 2.375V to 2.625V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

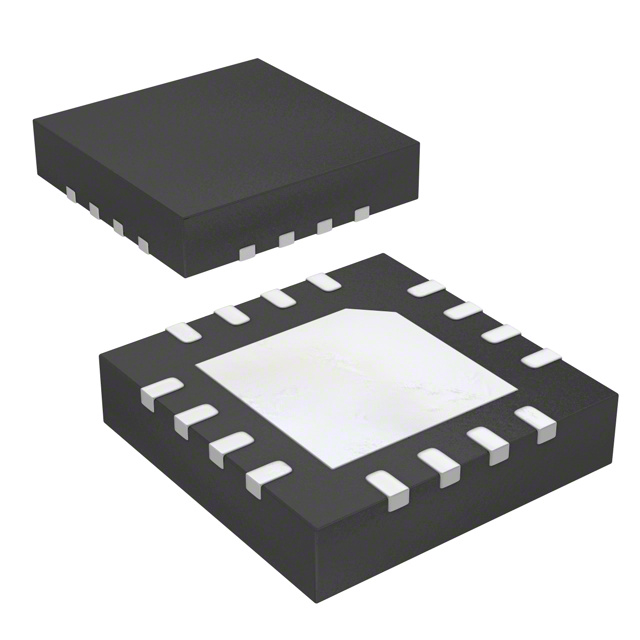

Package/Housing: 16-VFQFN

Application field

The 8S89832AKILFT is suitable for high-speed signal transmission scenarios, such as clock systems, communication interfaces, and other fields with strict requirements for signal integrity and timing.
