The ADS1220IPWR is a precise 24-bit analog-to-digital converter (ADC). The multiple integrated features can reduce system costs and decrease the number of components in small sensor signal measurement applications. The ADS1220IPWR features two differential inputs or four single-ended inputs implemented through an input multiplexer (MUX), a low-noise programmable gain amplifier (PGA), two programmable excitation current sources, a voltage reference, an oscillator, a low-side switch, and a precision temperature sensor.

The ADS1220IPWR has the following main features:

Low current: As low as 120μA in duty cycle mode (typical value

Wide power supply voltage range: 2.3V to 5.5V

Programmable gain: 1V/V to 128V/V

Programmable data rate: up to 2kSPS

Up to 20-bit effective resolution

A single-period stable digital filter is adopted at 20SPS

Achieve harmonic suppression at 50Hz and 60Hz

Two differential inputs or four single-ended inputs

Double-matching programmable current source

10μA to 1.5mA

Integrated 2.048V reference voltage: drift 5ppm/°C (typical value)

Integrated 2% precise oscillator

Integrated temperature sensor: Accuracy 0.5°C (typical value)

Interface compatible with SPI (Mode 1)

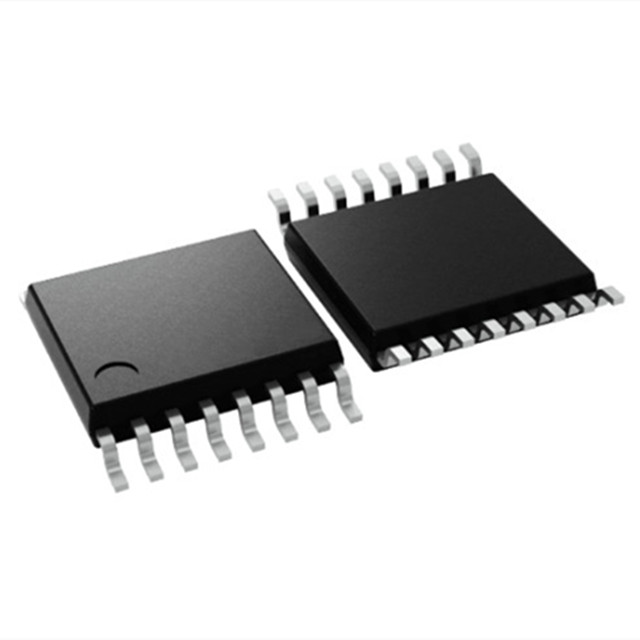

The ADS1220IPWR is packaged in a 16-pin TSSOP and operates within a temperature range of -40°C to 125°C. It is widely applied in the following scenarios:

Temperature sensor measurement

Thermistor

Thermocouple

Resistive temperature detector (RTD)

2-wire, 3-wire or 4-wire system types

Resistance bridge sensor measurement

Pressure sensor

Stress gauge

Weighing instrument

Portable instrument

Factory automation and process control
