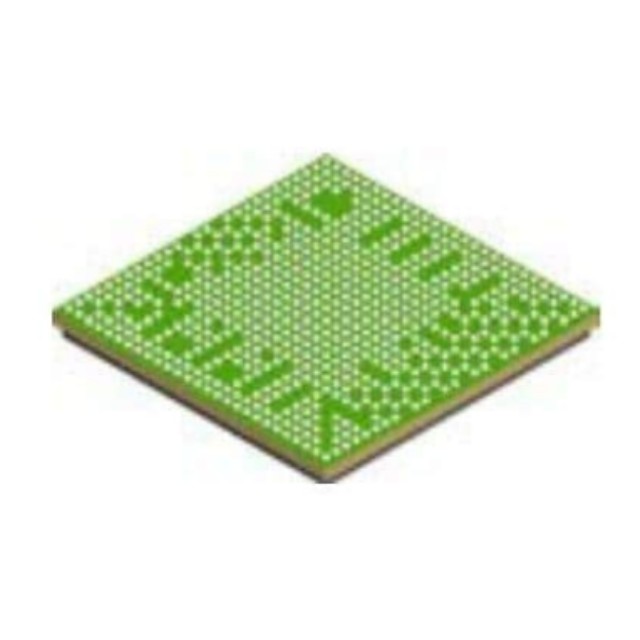

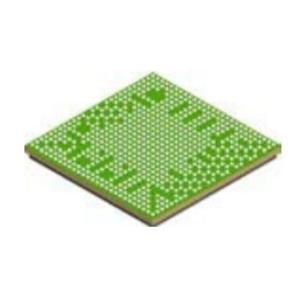

TDA4VEN8J5AAMWRQ1 processor is an extension of the Jacinto™ 7 automotive-grade family of heterogeneous Arm® processors targeted at Advanced Driver Assistance System (ADAS) applications. With embedded Deep Learning (DL), Video, Vision Processing, and 3D Graphics acceleration, display interface and extensive automotive peripheral and networking options, TDA4VEN/TDA4AEN is built for a set of cost and power sensitive automotive applications such as NCAP front camera or entry-level park assistance systems.

Feature Of TDA4VEN8J5AAMWRQ1

Processor Cores:

Up to Quad 64-bit Arm Cortex-A53 microprocessor subsystem at up to 1.4GHz

Quad-core Cortex-A53 cluster with 512KB L2 shared cache with SECDED ECC

Each A53 core has 32KB L1 DCache with SECDED ECC and 32KB L1 ICache with Parity protection

Single-core Arm Cortex-R5F at up to 800MHz, integrated as part of MCU Channel with FFI

32KB ICache, 32KB L1 DCache, and 64KB TCM with SECDED ECC on all memories

512KB SRAM with SECDED ECC

Single-core Arm Cortex-R5F at up to 800MHz, integrated to support Device Management

32KB ICache, 32KB L1 DCache, and 64KB TCM with SECDED ECC on all memories

Single-core Arm Cortex-R5F at up to 800MHz, integrated to support Run-time Management

32KB ICache, 32KB L1 DCache, and 64KB TCM with SECDED ECC on all memories

Two Deep Learning Accelerators (up to 4 TOPS total), each with:

C7x floating point, up to 40 GFLOPS, 256-bit Vector DSP at up to 1.0GHz

Matrix Multiply Accelerator (MMA), up to 2 TOPS (8b) at up to 1.0GHz

32KB L1 DCache with SECDED ECC and 64KB L1 ICache with Parity protection

2.25MB of L2 SRAM with SECDED ECC

Depth and Motion Processing Accelerators (DMPAC)

Dense Optical Flow (DOF) Accelerator

Stereo Disparity Engine (SDE) Accelerator

Vision Processing Accelerators (VPAC) with Image Signal Processor (ISP) and multiple vision assist accelerators:

600 MP/s ISP

Support for 12-bit RGB-IR

Support for up to 16-bit input RAW format

Line support up to 4096

Wide Dynamic Range (WDR), Lens Distortion Correction (LDC), Vision Imaging Subsystem (VISS), and Multi-Scalar (MSC) support

Output color format : 8-bits, 12-bits, and YUV 4:2:2, YUV 4:2:0, RGB, HSV/HSL

Applications Of TDA4VEN8J5AAMWRQ1

Front camera systems

Surround View and park assistance systems

eMirror/Camera Mirror System (CMS)

Radar and Lidar based automotive perception systems
