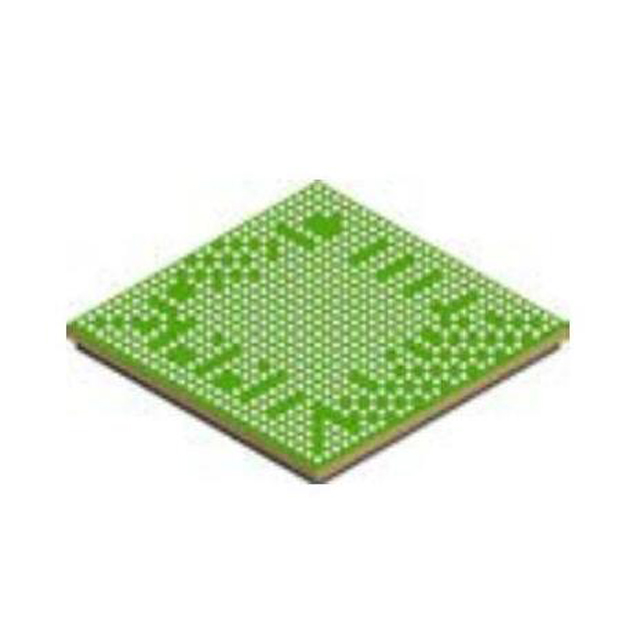

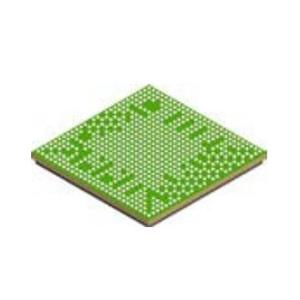

AM6734AKGHIAMWR: Sitara™ 4-Core, 64-Bit ARM® Cortex®-A53 Microprocessor IC, FCBGA-594

Model: AM6734AKGHIAMWR

Package: FCBGA-594

Type: Microprocessor - MPU

AM6734AKGHIAMWR Specifications:

Family: Sitara™

Core Processor: ARM® Cortex®-A53

Number of Cores/Bus Width: 4-core, 64-bit

Speed: 1.4GHz

Co-processor/DSP: ARM® Cortex®-R5F, C7x, GPU

RAM Controller: LPDDR4

Graphics Acceleration: None

Display and Interface Controller: LVDS, MIPICSI2, OLDI

Ethernet: 10/100/1000Mbps (2)

USB: USB 2.0 (1), USB 3.1 (1)

Voltage - I/O: 1.1V, 1.2V, 1.35V, 1.8V, 3.3V

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount Type

Package/Housing: 594-BFBGA, FCBGA

Supplier Device Package: 594-FCBGA (18x18)

AM6734AKGHIAMWR 产品特性：

处理器内核：

多达四核 64 位 Arm Cortex-A53 微处理器子系统（频率高达 1.4GHz）

四核 Cortex-A53 集群（具有 512KB L2 共享高速缓存，包括 SECDED ECC）

每个 A53 内核包含具有 SECDED ECC 功能 32KB L1 DCache with SECDED ECC and 32KB L1 ICache with parity protection

Single-core Arm Cortex-R5F (up to 800MHz), integrated as part of the MCU channel with FFI

32KB ICache, 32KB L1 DCache, and 64KB TCM with SECDED on all memories ECC

512KB SRAM with SECDED ECC

Single-core Arm Cortex-R5F (up to 800MHz), can be integrated to support device management

32KB ICache, 32KB L1 DCache and 64KB TCM, SECDED ECC on all memories

Single-core Arm Cortex-R5F ( up to 800MHz) that can be integrated to support runtime management

32KB ICache, 32KB L1 DCache and 64KB TCM on all memories SECDED ECC

Vision Processing Accelerator (VPAC) with Image Signal Processor (ISP) and multiple vision coaccelerators:

600MP/s ISP

12-bit support RGB-IR

Supports up to 16-bit input RAW formats

Line support up to 4096

Wide Dynamic Range (WDR), Lens Distortion Correction (LDC), Visual Imaging Subsystem (VISS), and Multiple Scalar (MSC) support

Output colour formats: 8-bit, 12-bit, and YUV 4:2:2, YUV 4:2:0, RGB, HSV/HSL
