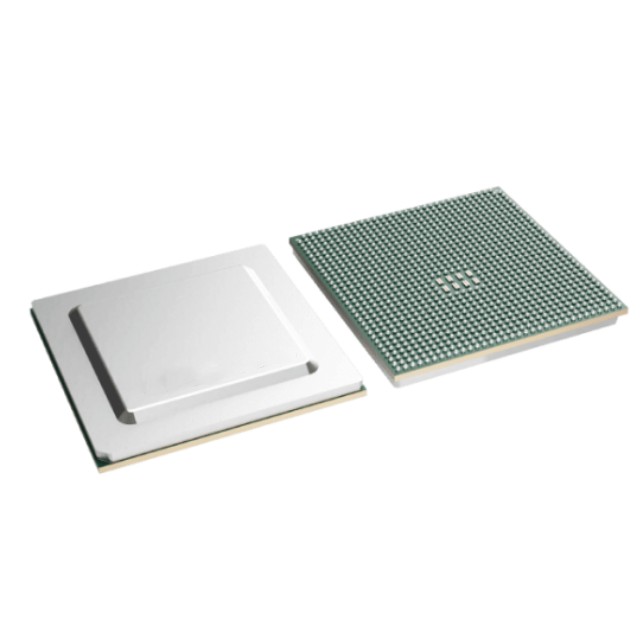

TDA4APE4T5AANDRQ1: Jacinto™ Automotive Grade Processor - Automotive System on a Chip, FCBGA-1063

Model: TDA4APE4T5AANDRQ1

Package: FCBGA-1063

Type: Jacinto™ Automotive Grade Processor

TDA4APE4T5AANDRQ1 Specifications:

Family: Jacinto™

Core Processor: ARM® Cortex®-A72

Core Count/Bus Width: 4-core, 64-bit

Speed: 2GHz

Co-processor/DSP: ARM® Cortex®-R5F, C7x

RAM Controller: LPDDR4

Graphics Acceleration: None

Display & Interface Controller: LVDS, MIPICSI2, OLDI

Ethernet: 1Gbps (6)

USB: USB 3, 0 (1)

Voltage - I/O: 1.1V, 1.2V, 1.8V, 3.3V

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Package/Case: 1063-BFBGA, FCBGA

Vendor Devices Package: 1063-FCBGA (27x27)

TDA4APE4T5AANDRQ1 Product Features:

Processor Cores:

Up to three C7x floating-point, vector DSPs with performance up to 1.0GHz, 240GFLOPS, 768GOPS

Up to two deep learning matrix multiplication accelerators (MMAv2) with performance up to 16TOPS (8b) at 1.0GHz

Up to two image signal processors (ISPs) with Vision Processing Accelerators (VPACs) with Image Signal Processors (ISPs) and multiple Vision Assist Accelerators

Depth and Motion Processing Accelerators (DMPACs)

Quad-core Arm Cortex-A72 microprocessor subsystems up to 2.0GHz

2MB of L2 shared cache per Quad-core Cortex-A72 cluster

32KB L1 data cache per Cortex-A72 core with 32KB L1 data cache and 48KB L1 instruction cache

Eight Arm Cortex-R5F MCUs with performance up to 1.0GHz

16K instruction cache, 16K data cache, 64K L2 TCM

Two Arm Cortex-R5F MCUs in the isolated MCU subsystem

Six Arm Cortex-R5Fs in the general-purpose computing partition MCU

GPU IMG BXS-4-64, 256kB cache, performance up to 800MHz, 50GFLOPS, 4GTexels/s (TDA4VPE)
