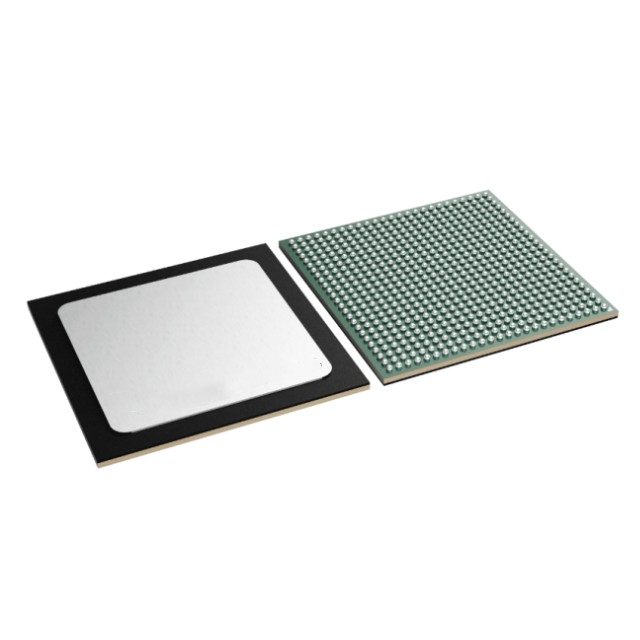

DRA712BGGCBDRQ1 processor is offered in a 538-ball, 17×17-mm, 0.65-mm ball pitch (0.8mm spacing rules can be used on signals) with Via Channel™ Array (VCA) technology, ball grid array (BGA) package.

Feature  Of DRA712BGGCBDRQ1

Architecture designed for infotainment applications

Video, image, and graphics processing support

Full-HD video (1920 × 1080p, 60 fps)

Multiple video input and video output

2D and 3D graphics

Arm® Cortex®-A15 microprocessor subsystem

C66x floating-point VLIW DSP

Fully object-code compatible with C67x and C64x+

Up to thirty-two 16 × 16-bit fixed-point multiplies per cycle

Up to 512KB of on-chip L3 RAM

Level 3 (L3) and Level 4 (L4) interconnects

DDR3/DDR3L Memory Interface (EMIF) module

Supports up to DDR-1333 (667 MHz)

Up to 2GB across single chip select

Dual Arm® Cortex®-M4 Image Processing Units (IPU)

IVA-HD subsystem

Display subsystem

Display controller With DMA engine and up to three pipelines

HDMI™ encoder: HDMI 1.4a and DVI 1.0 compliant

2D-graphics accelerator (BB2D) subsystem

Vivante® GC320 core

Video Processing Engine (VPE)

Single-core PowerVR™ SGX544 3D GPU

One Video Input Port (VIP) module

Support for up to four multiplexed input ports

General-Purpose Memory Controller (GPMC)

Enhanced Direct Memory Access (EDMA) controller

2-port gigabit ethernet (GMAC)

Up to two external ports

Sixteen 32-bit general-purpose timers

32-Bit MPU watchdog timer

Six high-speed inter-integrated circuit (I2C) ports

HDQ™/1-Wire® interface

Ten configurable UART/IrDA/CIR modules

Four Multichannel Serial Peripheral Interfaces (McSPI)

Quad SPI Interface (QSPI)

Media Local Bus Subsystem (MLBSS)

Eight Multichannel Audio Serial Port (McASP) modules

SuperSpeed USB 3.0 dual-role device

High-speed USB 2.0 dual-role device

High-speed USB 2.0 on-the-go

Four MultiMedia Card/Secure Digital/Secure Digital Input Output Interfaces (MMC™/SD®/SDIO)

PCI Express® 3.0 subsystems with two 5-Gbps lanes

One 2-lane Gen2-compliant port

or two 1-lane Gen2-compliant ports

Dual Controller Area Network (DCAN) modules

CAN 2.0B protocol

MIPI® CSI-2 camera serial interface

Up to 186 General-Purpose I/O (GPIO) pins

Device security features

Hardware crypto accelerators and DMA

Firewalls

JTAG lock

Secure keys

Secure ROM and boot

Customer programmable keys

Power, reset, and clock management

On-chip debug with CTools technology

28-nm CMOS technology

17 mm × 17 mm, 0.65-mm pitch, 538-pin BGA (CBD)

Applications Of DRA712BGGCBDRQ1

Human-machine interface (HMI)

Navigation

Digital and analog radio

Multimedia playback

Automotive display audio systems

Automotive entry navigation and multimedia systems

Automotive digital cluster systems
