The LTC2165CUK is a 16-bit, 125Msps, low-power analog-to-digital converter (ADC) specifically designed for digital processing of high-frequency, wide dynamic range signals. The LTC2165CUK is highly suitable for demanding communication applications, with AC performance including 76.8dB SNR and 90dB parasitic dynamic range (SFDR). The ultra-low jitter of 0.07psRMS achieves under-sampling of IF frequency and outstanding noise performance. The following are its core features:

76.8dB SNR

90dB SFDR

Low power: 194mW / 163mW / 108mW

Only 1.8V power supply

CMOS, DDR CMOS or DDR LVDS output

Optional input range: 1VP-P to 2VP-P

550MHz full power bandwidth S/H (sampling and holding)

A random function generator for arbitrary data output

Optional clock duty cycle stabilizer

Shutdown and nap mode

The serial SPI port for configuration

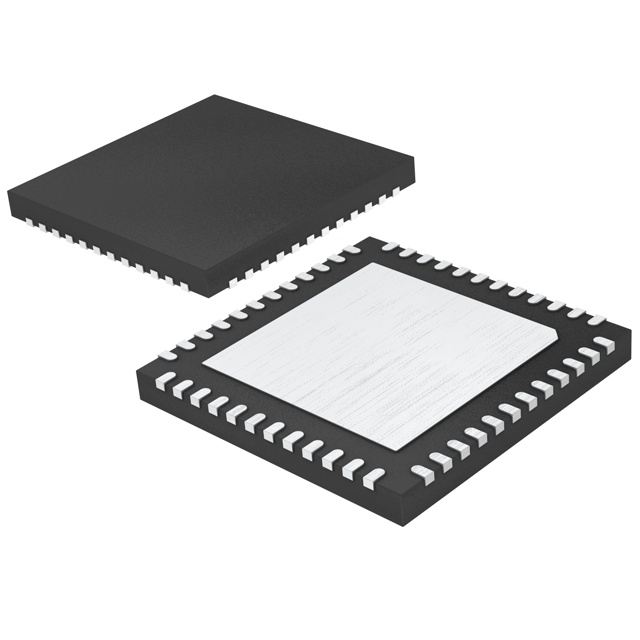

48-pin (7mm x 7mm) QFN package

Target application

Communication

Cellular base station

Software-defined radio

Portable medical imaging

Multi-channel data acquisition

Non-destructive testing
