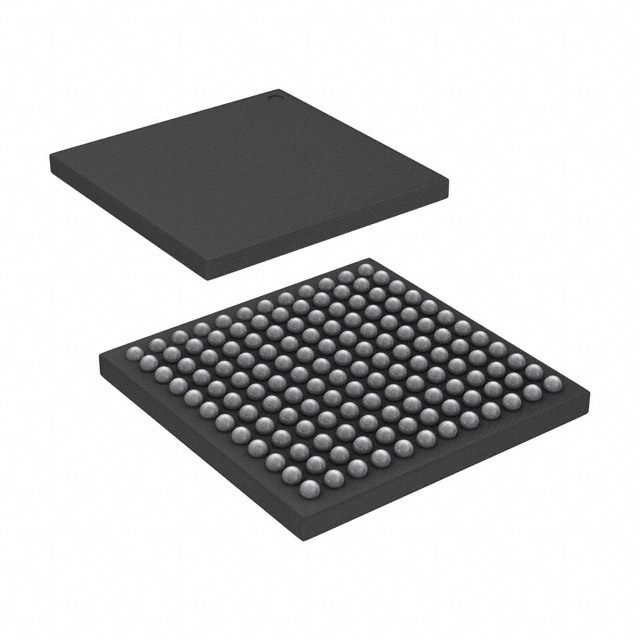

For picture reference, please see the specifications
< >

Commodity Model:AD9652BBCZ-310

Trade Name:Analogue To Digital Converters - ADC

Brand:ADI

Particular Year:25+

Package:BGA-144

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
AD9652BBCZ-310
Package
BGA-144
Describe
16-bit, 310 MSPS, 3.3/1.8V dual-channel analog-to-digital converter (ADC)

Product Description

The AD9652BBCZ-310 is a dual-channel, 16-bit analog-to-digital converter (ADC) with a maximum sampling rate of 310 MSPS. It is used to support high-demand, high-speed signal processing applications that require excellent dynamic range over a wide input frequency range (up to 465 MHz). Its outstanding low background noise (-157.6 dBFS) and large signal spurious dynamic range (SFDR) performance (over 85 dBFS, typical value) enables the resolution of low-level signals in the presence of large signals.


Main features

High dynamic range

-SNR = 75.0 dBFS (70 MHz, AIN = -1 dBFS)

-SFDR = 87 dBc (70 MHz, AIN = -1 dBFS)

Outstanding IF sampling performance

-SNR = 73.7 dBFS (170 MHz, AIN = -1 dBFS)

-SFDR = 85 dBc (170 MHz, AIN = -1 dBFS)

The full-power bandwidth is 465 MHz

3.3V on-chip buffer

The programmable input range is from 2 V p-p to 2.5 V p-p (default value).

Differential clock input receiver with 1, 2, 4 and 8 integer inputs (clock divider input up to 1.24 GHz)

Internal ADC clock duty cycle stabilizer

The SYNC input allows for multi-chip synchronization

Total power consumption

2.16W

-3.3V and 1.8V power supply voltages

DDR LVDS (ANSI-644 level) output

Serial port control

Energy-saving power-off mode


In addition, the AD9652BBCZ-310 is packaged in a 144-pin CSP_BGA package, with a rated temperature range of -40 ° C to +85 ° C in the industrial temperature range. This product is protected by a US patent currently under application.


Application scenarios

Military radar and communication

Multimode digital receiver (3G or 4G

Testing and instrumentation

Intelligent antenna system
